【 Product Features 】

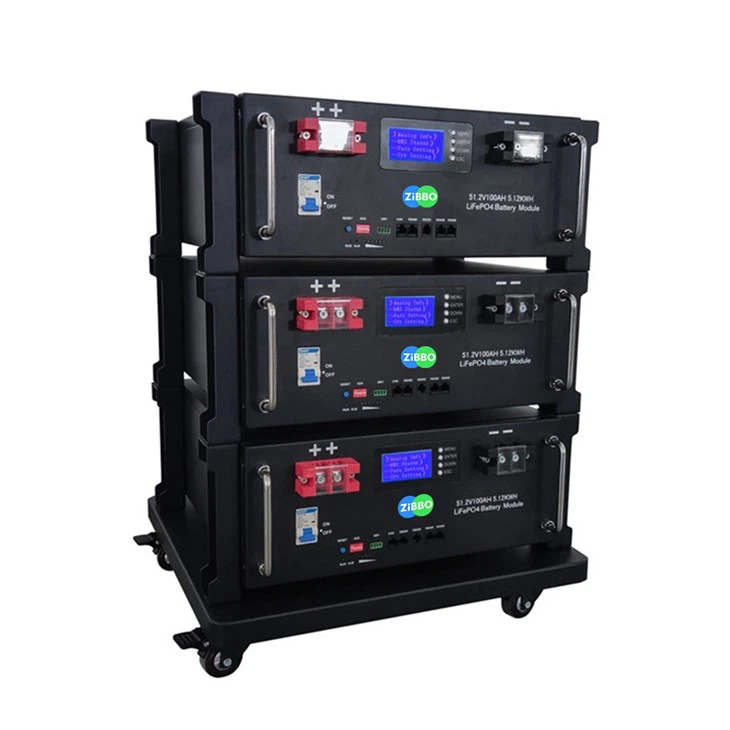

Modular design: The battery module adopts a standardized design, allowing users to freely increase or reduce the number of modules according to their needs, and easily achieve system expansion and upgrade.
Flexible scalability: With a maximum system expansion capacity of 81.92kwh, it provides strong support for your energy needs, meeting long-term and large-scale power storage needs.
Long cycle life: ZBPOWER 48V/51.2V 100Ah lithium battery provides 6000+ deep cycle and 10 years of service life.
24-hour uninterruptible power supply: combined with solar energy storage system to ensure stable and reliable power output day and night.
Smart BMS: Ideal for solar home systems, power outages, off-grid living, security or monitoring systems, etc.
WIFI Remote Monitoring: View device status in real time and easily manage your energy system via mobile or computer applications. Ideal for solar home systems, power outages, off-grid living, security or monitoring systems, etc.
Articles du produit
Product Specifications
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
300Ah @0.5C discharge current 25±2℃ |
|
Rated Energy |
15.36KWH |
|
Dimension |
440*430*177MM*3 |
|
Cycle Life |
6000 Cycles @ 0.2C Charging / Discharging,Until 80% Capacity |
|
Continuously Charge/Discharge Current (A) |
100A @25±2℃ (Recommended) |
|
Charge Temperature |
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
|
Discharge Temperature |
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
|
Battery Configuration |
16S1P*3 |
|
Communication Interface |
CAN (Default) or RS485 or RS232 |
|
Net Weight(single cell) |
About 135kg |
