ZBPOWER:Your Professional Cabinet Type Energy Storage Battery Manufacturer!



Shenzhen ZBPOWER Energy Co., Ltd., established in 2012, is a high-tech enterprise integrating energy storage R&D, production, and sales. We provide global customers with solutions such as lithium batteries (lithium iron phosphate batteries), energy storage batteries, outdoor power banks, solar traffic lights, streetlight monitoring systems, and lithium battery replacements for lead-acid batteries.





Why Choose Us

Our Factory

Our factory now has 100 employees, plant area of 6000 square metre, the company has 2 semi-automatic production lines, 4 assembly lines.



Production Market

Our products are fully certified and are exported to more than 20 countries and regions such as Europe, America, Africa, Brazil, Mexico, Australia, Thailand, Vietnam, Taiwan and so on.

OEM/ODM

We have an experienced team of energy storage architecture and software engineers, providing flexible and customized services. In addition, our marketing team provides one-on-one support and offers a full range of marketing solutions and services to help you expand your business in the local market.



Advanced Equipment

The company has a professional lithium battery laboratory, assembled with high and low temperature tester, overcharge tester, over-discharge tester, short-circuit tester, heavy impact tester, vibration tester, protection board tester, 6000W high-power load meter and other advanced test equipment to verify the performance of the battery cell, protection board, battery pack, to ensure product safety!





Technical Parameter

Model

ZB-C-3U-512100

ZB-C-3U-512200

ZB-C-3U-512300

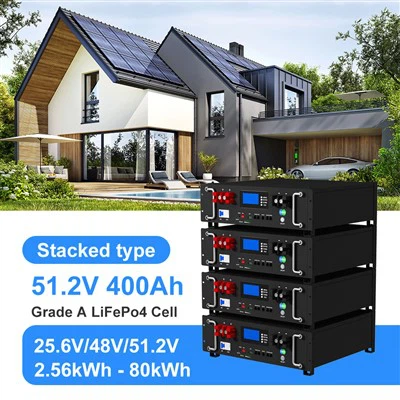

ZB-C-3U-512400

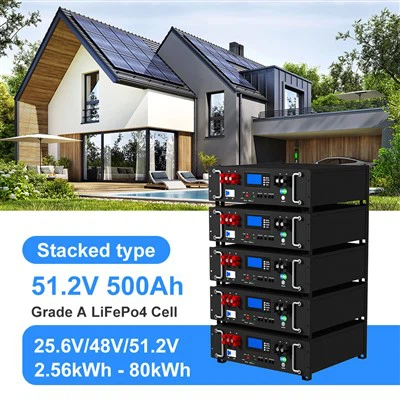

ZB-C-3U-512500

ZB-C-3U-512600

Specification

51.2V 100AH 5.12kWh

51.2V 200AH 10.24kWh

51.2V 300AH 15.36kWh

51.2V 400AH 20.48kWh

51.2V 500AH 25.6kWh

51.2V 600AH 30.72kWh

Composition

16S1P

16S1P*2

16S1P*3

16S1P*4

16S1P*5

16S1P*6

Working Voltage Rang

43.2V-57.6V

43.2V-57.6V*2

43.2V-57.6V*3

43.2V-57.6V*4

43.2V-57.6V*5

43.2V-57.6V*6

Max Charge Current

Max:50A

Max:50A*2

Max:50A*3

Max:50A*4

Max:50A*5

Max:50A*6

Max Discharge Current

Max:100A

Max:100A*2

Max:100A*3

Max:100A*4

Max:100A*5

Max:100A*6

Display

LCD Display Screen

Battery Size(WxDxH)

L440*W430*H133mm

L440*W430*H266mm

L440*W430*H399mm

L440*W430*H532mm

L440*W430*H665mm

L440*W430*H798mm

Package Size(WxDxH)

L550*W540*H215mm (Each layer individually packaged)

Net Weight

44.5Kg

44.5Kg*2

44.5Kg*3

44.5Kg*4

44.5Kg*5

44.5Kg*6

Gross Weight

47.0Kg

47.0Kg*2

47.0Kg*3

47.0Kg*4

47.0Kg*5

47.0Kg*6





Advantages of Cabinet Type Energy Storage Battery
Solar 30kwh Rack Mounted 51.2V 600Ah Class A Lithium Battery

High Energy Density

Cabinet type energy storage batteries have a high energy density, which means that a large amount of electric energy can be stored within a given volume. This makes such batteries ideal for limited-space locations.

ZBPOWER Stackable 51.2V 300Ah Lithium Battery 6000 Cycle Life 15kWh

Easy to Maintenance

Drawing module design, when the battery pack fails or needs to be maintained, it can be repaired in groups or directly replace a single group of battery, without affecting the use of the system.

3U Cabinet Type Energy Storage Battery 51.2V 5KWH-30KWH

High Reliability

It adopts strict safety measures and multiple protection mechanisms to ensure the stable operation of the energy storage system and the safety of the electricity consumption.

25KWH LiFePO4 Phosphate Rack Mountable Battery

System Pre-install

A single backup battery is installed into the energy storage cabinet in advance, greatly reducing the time and energy required for customers to install and configure it on site.



Application of Cabinet Type Energy Storage Battery


Industrial Energy Storage

Industrial operations, including manufacturing plants and warehouses, often have high energy demands. A cabinet type energy storage battery can meet these demands efficiently, especially when integrated with renewable energy sources like solar power. By providing a steady backup energy source, these energy storage systems reduce the need for expensive peak-demand energy from the grid and ensure smooth operations, even in case of power outages.

Commercial Energy Storage

In commercial environments, such as retail chains, office buildings, or large data centers, having reliable and cost-effective energy storage systems is crucial. Installing cabinet type energy storage battery offers these businesses the opportunity to reduce energy costs, manage demand more efficiently, and create a more sustainable energy infrastructure.

Renewable Energy Integration

Cabinet type energy storage battery solutions are also ideal for integrating renewable energy systems, particularly solar and wind. These energy storage systems often generate surplus energy during peak production times, which can be stored in the ESS for later use. By harnessing this stored energy, businesses can maximize the efficiency of their renewable energy systems, ensuring that they are using clean energy as much as possible and reducing dependency on the grid.

Off-grid and Remote Installations

In areas lacking access to the traditional power grid, cabinet type energy storage battery provide a reliable energy solution. For remote industrial sites, off-grid communities, or rural areas, these systems can store energy from local renewable sources and ensure a constant power supply.



Components of Cabinet Type Energy Storage Battery



Battery Unit

This is the core part of the cabinet type energy storage battery and is used to store electrical energy. Common battery types include lithium-ion batteries, lithium iron phosphate batteries, and lead-acid batteries.

Battery Management System (BMS)

Responsible for monitoring and managing the status of battery cells, including voltage, temperature, charging status, etc., to ensure the safe and efficient operation of the battery.

Inverter

Converts direct current (DC) to alternating current (AC) to power AC equipment or feed back to the grid.

Power Control System (PCS)

Includes charger and inverter, used to manage the charging and discharging process of the battery to ensure efficient conversion and transmission of electric energy.

Energy Management System (EMS)

Used to optimize and control the operation of the entire energy storage system, manage the flow of power, and ensure the efficiency and reliability of the system.

Cooling System

Used to maintain batteries and electronic equipment within a suitable temperature range to prevent overheating.

Safety System

Including fire detection and suppression system, overvoltage protection, overcurrent protection, etc., to ensure the safe operation of the system.

Cabinet

Provides physical protection and prevents environmental factors such as dust, moisture, and mechanical damage from affecting internal components.

Other Auxiliary Components

Such as power distribution units, circuit breakers, terminal blocks, etc., to ensure reasonable distribution of power and safe operation.



Types of Energy Storage Cabinets


Discrete Energy Storage Cabinet

Discrete energy storage cabinets are standalone units designed for specific applications, providing modular and scalable energy storage solutions.

Combined Energy Storage Cabinet

Combined energy storage cabinets integrate multiple energy storage technologies, offering enhanced flexibility and performance for diverse applications.

Base-type Energy Storage Cabinet

Base-type energy storage cabinets are typically used for industrial and large-scale applications, providing robust and high-capacity storage solutions.

Integrated Energy Storage Container

Integrated energy storage containers combine energy storage with other essential systems, such as cooling and control, within a single, compact unit.





Packaging and Shipping

Package:
* Use high hardness custom sponge to strengthen the battery


* 5 Layers of dangerous goods export corrugated carton


* Positive and negative with insulation


* We will label test data on each cell before delivery


* If customer have requirement, we can provide Wooden Packing for shipping.

productcate-1-1



Our certificates





productcate-1-1
productcate-1-1
productcate-1-1
productcate-1-1
productcate-1-1





FAQ



Q: How is your technical support?

A: We offer lifetime online support via Whatsapp/ Skype/ wechat/email. For any issues after delivery, we will provide you with video calls at any time. If necessary, our engineers will also go overseas to assist our customers.

Q: Can my logo be printed on the battery?

A: Yes, we accept OEM/ODM and can provide customized services for our partners.

Q: Can I have samples to test? And what is lead time for sample order?

A: Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales serive?

A: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.

Q: What is your lead time for the mass production?

A: General speaking, about 30 days depending on different items after getting down payment and confirmation about the samples.

Q: How about your payment and shipment?

A: Payment: We accept T/T, Western Union,Paypal etc. terms of payment. Shipment: Usually by sea.

Q: How often should I inspect my lithium battery storage cabinet?

A: Regular inspections are key to maintaining safety and efficiency. I recommend checking the cabinet at least once a month for any signs of wear, damage, or overheating.

Q: Can I store other types of batteries in the same cabinet as lithium batteries?

A: It's best to store different types of batteries separately. Mixing batteries can increase the risk of chemical reactions or other issues that could compromise safety.

As one of the leading cabinet type energy storage manufacturers in China, we warmly welcome you to wholesale high-grade cabinet type energy storage for sale here from our factory. All customized products are with high quality and competitive price.
