ZBPOWER:Your Professional All-in-one Energy Storage Battery Manufacturer!
Shenzhen ZBPOWER Energy Co., Ltd., established in 2012, is a high-tech enterprise integrating energy storage R&D, production, and sales. We provide global customers with solutions such as lithium batteries (lithium iron phosphate batteries), energy storage batteries, outdoor power banks, solar traffic lights, streetlight monitoring systems, and lithium battery replacements for lead-acid batteries.
-
![Solar All-in-one 6KW Inverter + 10kwh Lithium Battery]()
Solar All-in-one 6KW Inverter + 10kwh Lithium BatteryThe 6KW inverter +10kwh lithium battery system is an efficient energy conversion and storage solution. The inverter can convert direct current into alternating current to meet the needs of a...view more -

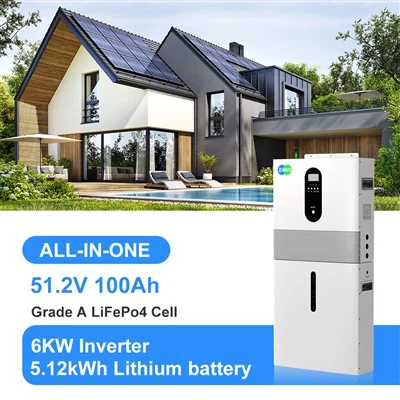

![6KW Off-grid Home Energy Storage System 51.2V 100Ah All-in-one Lithium Battery]()
6KW Off-grid Home Energy Storage System 51.2V 100Ah All-i...ZB-AIO-512200 All-in-one 48V/51.2V 100Ah LiFePO4 battery +6KW off-grid inverter Mounting method: Wall mounted battery. By mounting this lithium iron phosphate battery on the wall, you can make...view more -
![51.2V 200AH Stacked Energy Storage]()
51.2V 200AH Stacked Energy Storage51.2V 200Ah 10.24kwh lithium battery storage LiFePO4 off-grid solar lithium battery, high capacity modular design Stackable storage inverter all-in-one, 5KW off-grid inverter + single battery...view more
Why Choose Us
Our Factory
Our factory now has 100 employees, plant area of 6000 square metre, the company has 2 semi-automatic production lines, 4 assembly lines.
Production Market
Our products are fully certified and are exported to more than 20 countries and regions such as Europe, America, Africa, Brazil, Mexico, Australia, Thailand, Vietnam, Taiwan and so on.
OEM/ODM
We have an experienced team of energy storage architecture and software engineers, providing flexible and customized services. In addition, our marketing team provides one-on-one support and offers a full range of marketing solutions and services to help you expand your business in the local market.
Advanced Equipment
The company has a professional lithium battery laboratory, assembled with high and low temperature tester, overcharge tester, over-discharge tester, short-circuit tester, heavy impact tester, vibration tester, protection board tester, 6000W high-power load meter and other advanced test equipment to verify the performance of the battery cell, protection board, battery pack, to ensure product safety!
Technical Parameter
|
Product Model |
ZB-AIO-512100 |
ZB-AIO-512200 |
|
Module Capacity |
51.2V100AH*1 |
51.2V100AH*2 |
|
Cell Typ |
LiFePO4 |
|
|
Argument |
6KW+5KWH |
6KW+10KWH |
|
Photovoltaic Input |
Max:5500W/DC120-DC500V |
|
|
AC Input |
220-240V/50Hz/60Hz |
|
|
Output Waveform |
Pure Sine Wave |
|
|
Output Power |
Max:5.5KW |
|
|
Max Charge Current |
80A |
|
|
MPPT efficiency |
>98% |
|
|
Display |
LCD Display Screen |
|
|
Communication Interface |
RS485,RS232,CAN,WiFi(Optional) |
|
|
Protection class |
IP21 |
|
|
Installation |
Foor Standing |
|
|
Change Temperature |
0℃-45℃ |
|
|
Dischange Temperature |
-20℃-65℃ |
|
|
Storage Temperature |
-10℃-45 |
|
|
Cooling Method |
Air Cooling |
|
|
Design Life |
10 Years |
|
|
Cycles |
6000@25 /0.5C/80%DOD |
|
|
Battery&Inverter Size |
500*158*1076mm |
500*158*1576mm |
|
Battery Package Size(WxDxH) |
598*560*218mm |
598*560*218mm (*2) |
|
Inverter Package Size(WxDxH) |
560*560*218mm |
|
|
Net Weight |
52.3Kg +47.3Kg |
104.6Kg+47.3Kg |
|
Gross Weight |
55.3Kg+51.1Kg |
110.6Kg+50.4Kg |
|
* Size and Weight for reference only |
||
Advantages of All-in-one Energy Storage Battery
Convenience
All-in-one energy storage battery has higher convenience and ease of use. Users do not need to purchase and assemble each component separately, but only need to purchase a complete system. Traditional energy storage systems require users to select, install and debug each component by themselves, and the operation is relatively complicated.
System Integrated Management
All-in-one energy storage battery has a unified control system that can centrally manage and optimize the entire system. Traditional energy storage systems require users to configure the control system by themselves, and there may be compatibility issues between devices of different brands and models.
Simplified Installation Process
One of the main advantages of all-in-one energy storage batteries is their simplified installation process. Unlike traditional energy storage systems that require connecting and integrating multiple components, integrated systems are preconfigured, making installation faster and easier. This not only saves time but also reduces labor costs.
Space Efficiency
All-in-one energy storage batteries feature a compact design, integrating various functions into a single unit. This space-optimized design eliminates the need for the energy storage system to occupy excessive floor space. By combining multiple devices into a compact solution, homeowners have greater flexibility in how and where to integrate their energy solutions.
Simple Maintenance
With all parts integrated, troubleshooting and servicing are straightforward, requiring fewer separate diagnostics.
Application of All-in-one Energy Storage Battery
Household Energy Storage
The all-in-one energy storage battery can be used as a backup power source for homes. It works in conjunction with solar photovoltaic panels or the public grid, storing excess electricity generated during the day for use at night or during times of insufficient sunlight. It helps increase your energy independence and reduces reliance on the electrical grid.
Commercial
Commercial buildings that use an all-in-one energy storage battery can secure a more stable power supply and use it as an uninterruptible power source for critical equipment. Additionally, it stores electricity when rates are low and releases it when rates are high, reducing electricity expenses during peak periods.
Industrial
Large-scale energy storage can balance fluctuations in energy demand during industrial production processes, enhancing self-sufficiency in energy. At the same time, it can also reduce the demand for electricity during peak periods, thereby lowering electricity costs.
Central Office
Enterprises are increasingly focused on operational efficiency and cost. Utilizing an all-in-one energy storage battery not only ensures power quality, providing a stable supply to avoid significant losses, but it also allows for discharging during times of high electricity prices or high demand to balance power needs and reduce operational costs.
Public Utilities
The all-in-one energy storage battery can provide more reliable energy security for public facilities or emergency response infrastructures, and it also helps to reduce energy costs. This can be applicable for places such as schools, libraries, community centers, and the like.
Electric Vehicle Charging Station
The all-in-one energy storage battery stores electricity when prices are low and releases it during peak usage times. This not only alleviates stress on the electrical grid but also reduces electricity costs. It represents a practical and cost-effective investment for electric vehicle charging stations.
Agricultural Applications
For farmlands located in remote areas, energy storage systems can provide the necessary electricity for irrigation systems, grain storage facilities, and agricultural machinery, assisting with the growth, harvesting, and preservation of crops.
Tourist Areas
For tourist regions far from urban centers, an eco-friendly and economical power solution is essential. The all-in-one energy storage battery fully meets this need, whether for mountain cabins or island resorts.
Emergency Backup Power Supply
For certain critical locations or devices, a power outage can mean significant losses, such as for hospitals, data centers, base transceiver stations, telecommunications systems, communication equipment, switch-over applications, emergency services, and more. The equipment in these places requires a very stable supply of electricity, and an energy storage system can serve as a backup power source to keep devices running continuously.
Components of All-in-one Energy Storage Battery
The core of any energy storage system, the battery module stores energy generation for later use.
Common battery types include lithium-ion, solid-state, and flow batteries, with lithium-ion being the most widely used for all-in-one systems due to its efficiency and energy density.
Converts stored DC (direct current) energy into AC (alternating current) energy for use in homes, businesses, or feeding back into the grid.
Many all-in-one systems feature bidirectional inverters, allowing energy to flow in and out seamlessly.
The brain of the system, an EMS monitors and optimizes energy usage, storage, and distribution.
Advanced systems leverage AI and machine learning to predict energy demand and manage the system efficiently.
Provides a user-friendly way to monitor and control the system.
Modern interfaces often include mobile apps or web dashboards for real-time insights and remote management.
Includes features such as thermal management, short circuit protection, and fire suppression to ensure the system operates safely and reliably.
Maintenance of All-in-one Energy Storage Battery
Keep it Clean and Dr
Regularly clean around the battery and inverter with a soft, dry cloth. Avoid using water or chemical cleaners near electrical components.
Ensure the storage location is dry and well-ventilated to prevent moisture buildup and corrosion.
Monitor Temperature
Batteries perform best within a specific temperature range (usually 15–30°C or 59–86°F).
Excessive heat or cold can negatively impact battery life.
Use system monitoring apps to track temperature readings if available.
Consider insulation or climate control in extreme climates.
Inspect for Damage
Regularly check the battery pack and connections for signs of swelling, corrosion, leaks, or physical damage.
Address any issues promptly, especially swelling or leaks, as they may indicate internal failure.
Ensure all connections are tight and free of corrosion.
Check for frayed wires or unusual smells, and if found, shut down the system and consult a technician.
Proper Charging and Discharging
For lead-acid batteries, periodically check and top off electrolyte levels if needed.
Avoid overcharging or over-discharging lithium-ion batteries; ideally, keep them within the 20% to 90% charge range.
Consider using a Battery Management System (BMS) to prevent over-discharge or overcharge.
Avoid leaving lithium-ion batteries plugged in constantly, as this can cause them to overheat and degrade faster.
Long-Term Storage
If the system will be idle for an extended period (e.g., a month or more), prepare it for storage.
Maintain a charge level between 40% and 80% for optimal long-term storage.
Store batteries in a cool, dry, and stable environment, away from extreme temperatures and humidity.
Regular Use and Cycling
Avoid letting the battery sit idle for extended periods, as this can lead to sulfation in lead-acid batteries and capacity loss in lithium-ion batteries.
Regularly cycle the battery, but avoid deep discharges.
Package:
* Use high hardness custom sponge to strengthen the battery
* 5 Layers of dangerous goods export corrugated carton
* Positive and negative with insulation
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
Our certificates
FAQ
As one of the leading all-in-one energy storage manufacturers in China, we warmly welcome you to wholesale high-grade all-in-one energy storage for sale here from our factory. All customized products are with high quality and competitive price.
