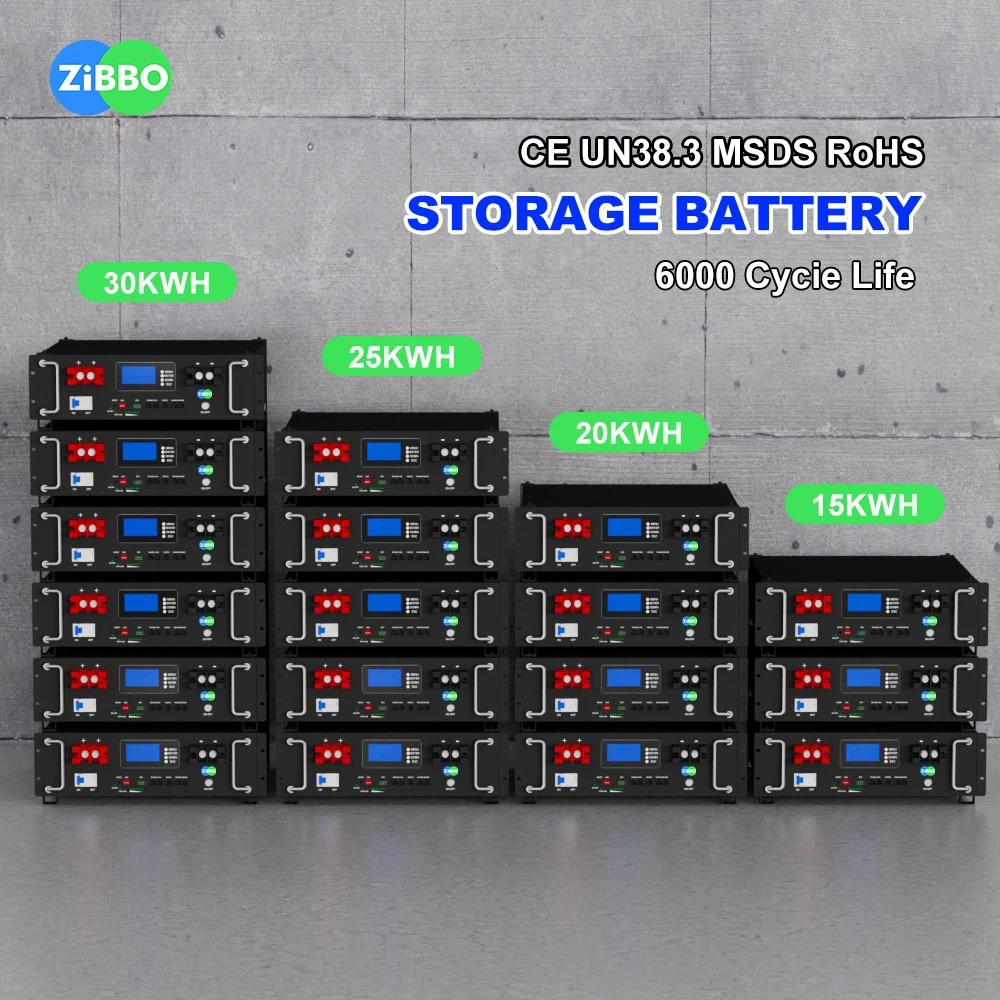

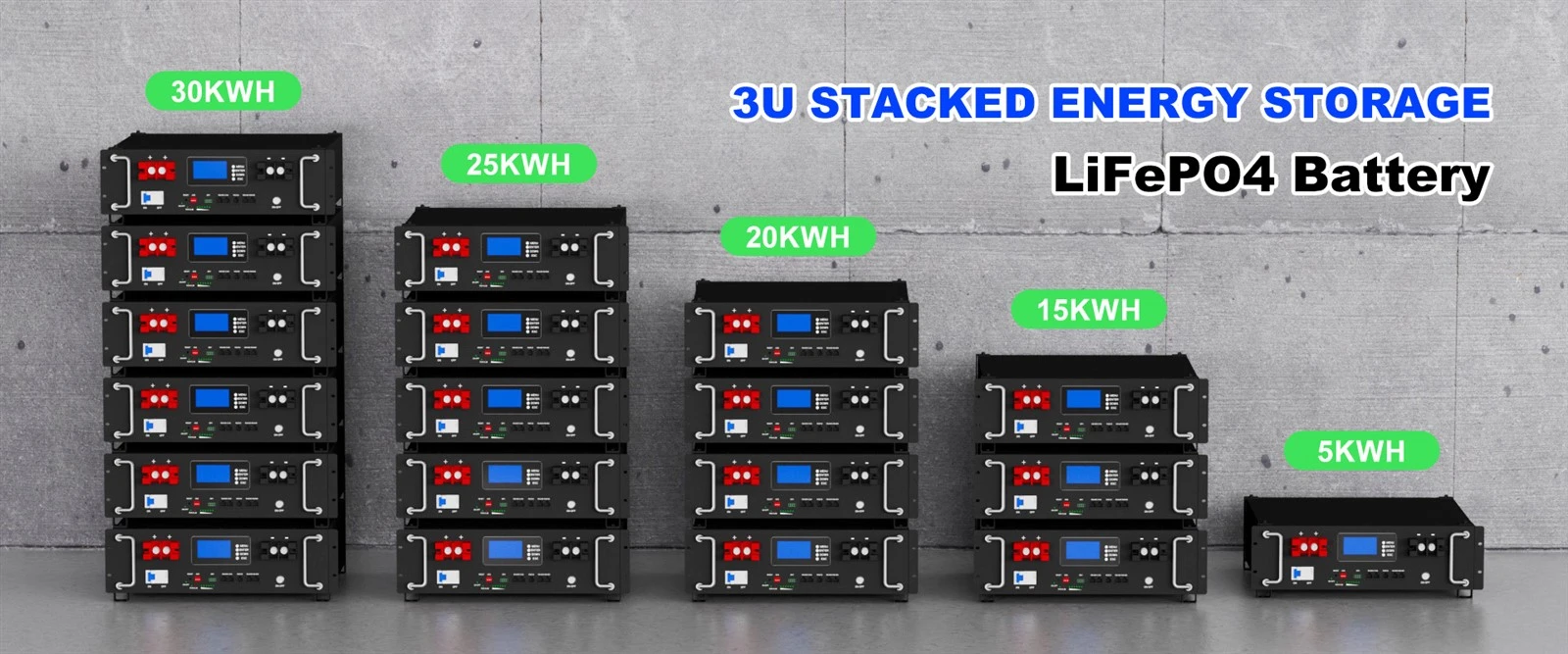

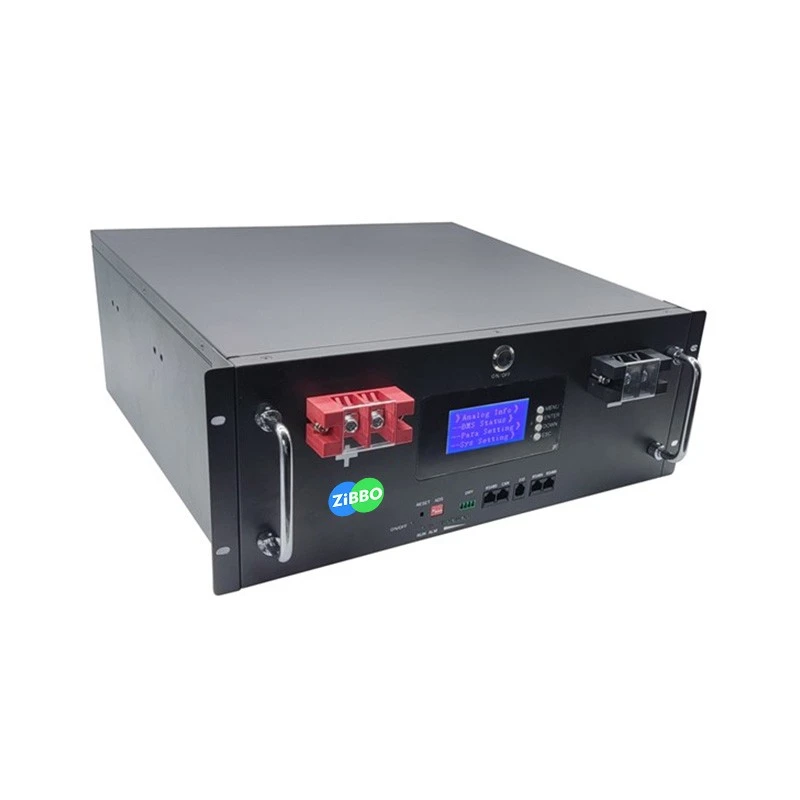

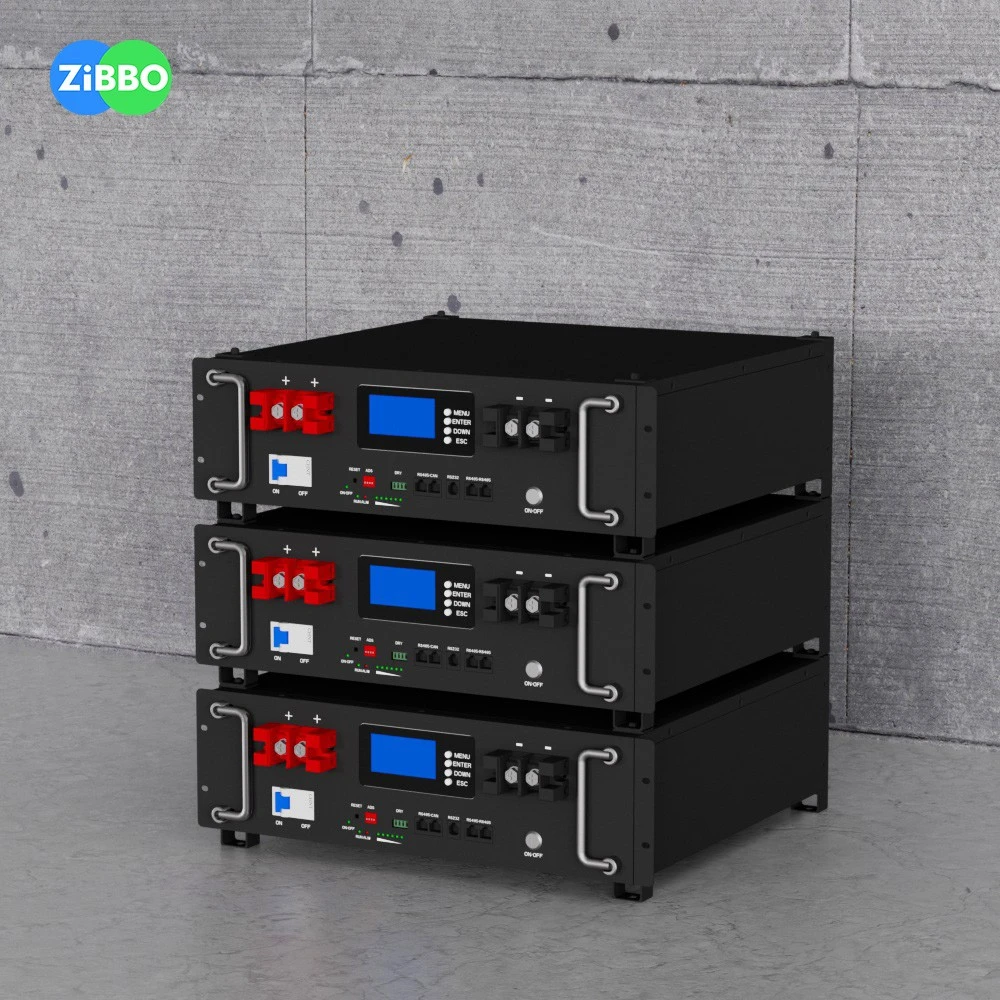

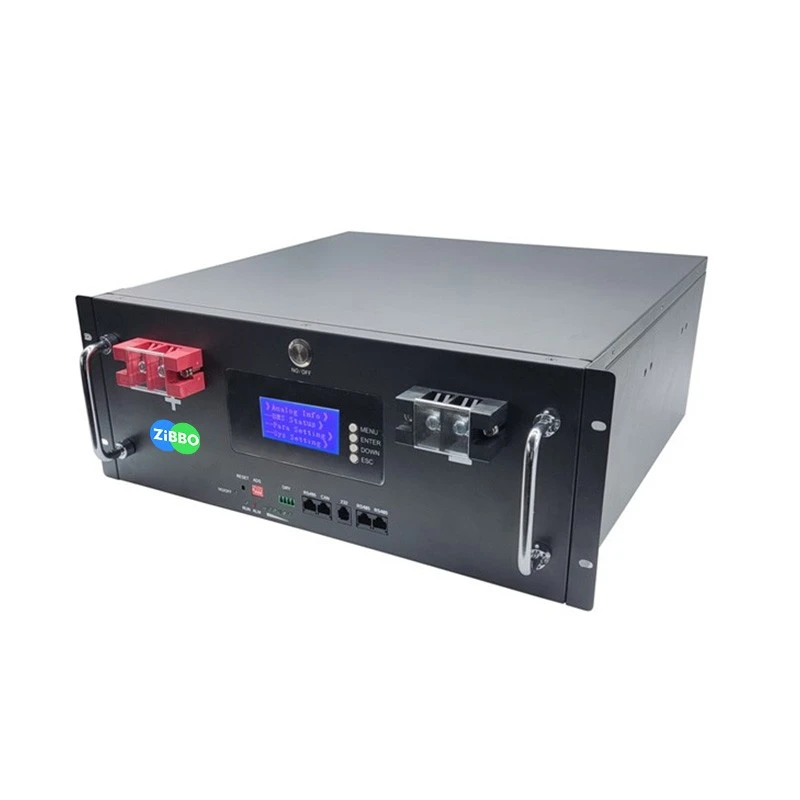

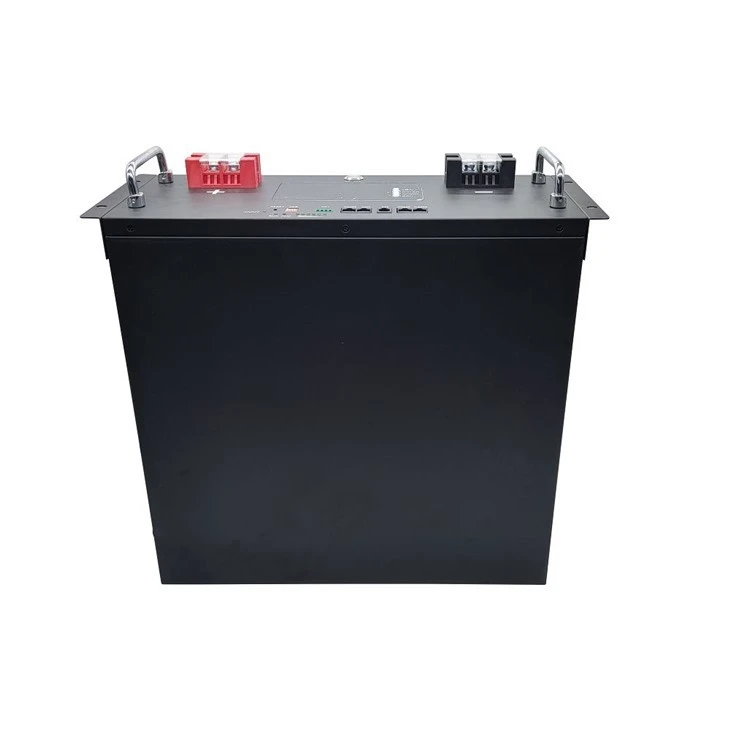

The 3U cabinets lithium iron phosphate energy storage battery adopts a modular design, with a small product size. The product can be equipped with a bracket, which can be stacked and expanded according to demand. It is widely used in telecommunications base stations, UPS backup power supplies, and home photovoltaic energy storage systems.
Product Attributes
Solar energy storage lithium battery one-stop solution
Application scenario
Technical Parameter
| Mode | ZB-C-3U-256100 | ZB-C-3U-256200 | ZB-C-3U-48100 | ZB-C-3U-512100 |
| Specification | 25.6V100AH | 25.6V200AH | 48V100AH | 51.2V100AH |
| Rated Energy | 2.56KWH | 5.12KWH | 4.8KWH | 5.12KWH |
| Cell Typ | LiFePO4 | |||
| Composition | 8S1P | 8S2P | 15S1P | 16S1P |
| Working Voltage Rang | 21.6V-28.8V | 21.6V-28.8V | 40.5V-54V | 43.2V-57.6V |
| Output Power | Max:2.5KW | Max:5KW | Max:5KW | Max:5KW |
| Max Charge Current | Max:50A | Max:100A | Max:50A | Max:50A |
| Max Discharge Current | Max:100A | |||
| Communication Interface | RS485,RS232,CAN | |||
| Design Life | 10 years | |||
| Cycles | 6000@25 /0.5C/80%DOD | |||
| Battery Size(WxDxH) | L440*W430*H133mm | |||
| Package Size(WxDxH) | L550*W540*H215mm | |||
| Net Weight | 25.6Kg | 44.5Kg | 42.5Kg | 44.5Kg |
| Gross Weight | 27.0Kg | 47.0Kg | 45.2Kg | 47.0Kg |
| * Bracket standard (removable) Size and weight for reference only | ||||
