Name: China ZBPOWER Customized 48V 100AH Li-FePO4 for Golf Cart Batteries and Tricycles Manufacturers Factory - ZBPOWER Technology
Brand: ZBPOWER
SKU: 231450812

Smart Lithium Iron Phosphate Battery 48V 100Ah

Remote diagnosis helps to find out the cause of the problem. High battery density, small size, light weight and reliable performance, ideal for low-speed cars, electric utility vehicles, golf carts and forklifts.

We also offer 24V 48V 51.2V customized lithium iron phosphate battery with different inverter options, welcome to contact us!

Advantageous features of ZBPOWER 48V 100AH 4.8KWH Customized Energy Storage

● Ultra-compact and light weight, 1/3 smaller than lead-acid batteries and 2/3 lighter than lead-acid batteries.

● Built-in intelligent BMS, with battery over-voltage, over-current, temperature, short circuit and other protection functions.

● Batteries can be monitored for remaining charge, charging and discharging current, voltage, temperature and other information.

● Good discharge performance

● Communication: CAN/RS485

● Battery error diagnosis

● Battery error diagnosis Battery cycle life over 2500 cycles

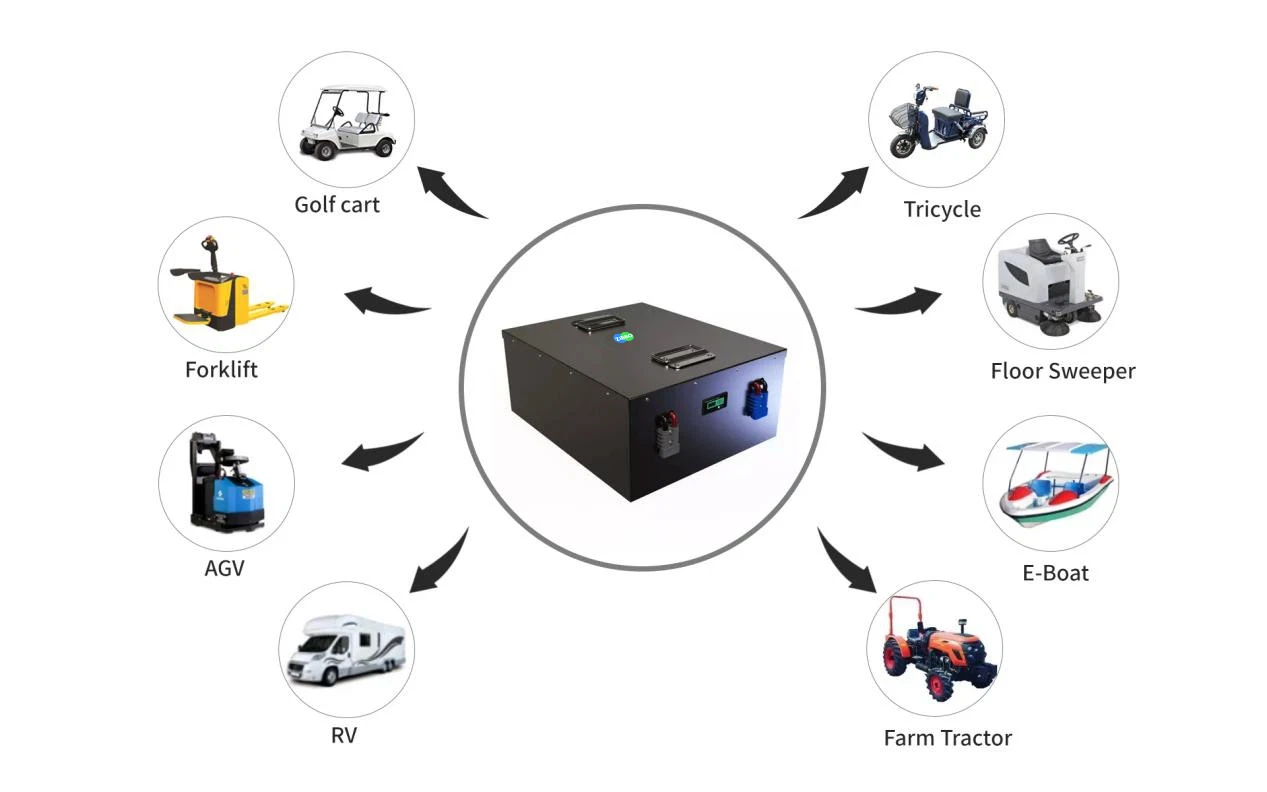

ZBPOWER Customized Energy Storage 4.8KWH Main Application Scenarios

FAQ

Q: What is LiFePO4 deep cycle battery?

A: Lithium iron phosphate batteries have the ability to deep cycle but at the same time maintain stable performance. A deep-cycle is a battery that's designed to produce steady power output over an extended period of time, discharging the battery significantly.

Q: Do I need a BMS for LiFePO4 cells?

A: A Battery Management System (BMS) is a critical component in any LiFePO4 battery system. It ensures the safe and efficient operation of the battery by monitoring key parameters, protecting against overcharging, over-discharging, and overheating, and balancing the cells to maintain optimal performance.

Q: What is the maximum charge current for LiFePO4 battery?

A: It is recommended to keep the charging current of LiFePO4 batteries below 0.5C, as overheating due to rapid charging can cause a negative effect on the battery. Although the current limit for your battery is 1C or higher. Lead-acid batteries are generally recommended to be charged under 0.2C.

Q: What to look for when buying LiFePO4 battery?

A: It's important to keep a few things in mind when comparing LiFePO4 batteries. These include the Battery Management System (BMS), cell grade, and how long they last. A reliable lithium battery is peace of mind (and then some).

Product Specifications

Nominal Voltage	48V
Nominal Capacity	100Ah @0.5C discharge current 25±2℃
Rated Energy	4.8KWH

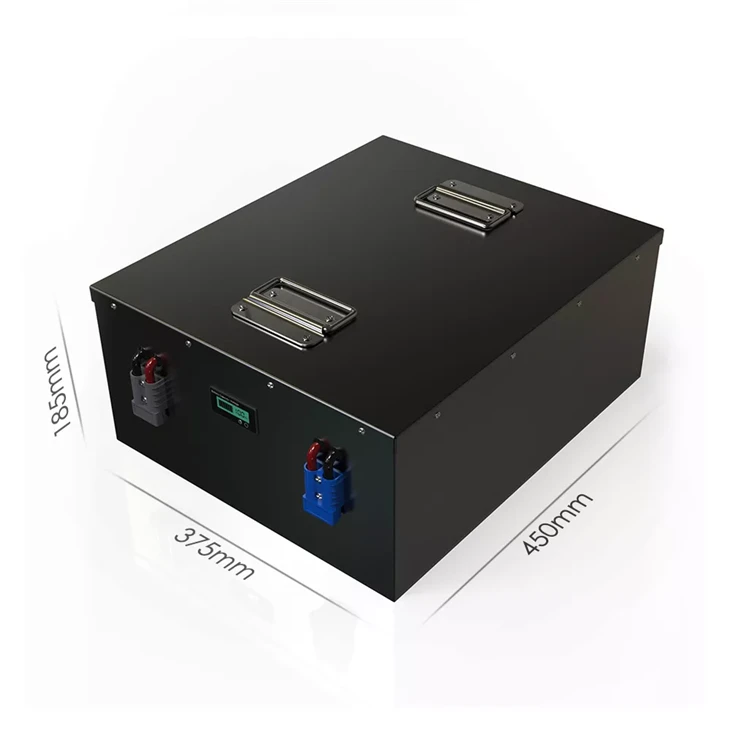

Dimension	133173192MM
Cycle Life	4000 Cycles @ 0.2C Charging / Discharging,Until 80% Capacity
Max. continuous charging current	100A
Max. continuous discharge current	100A
Max. charging current	200 A (1C rate)
warranty	2 years
BMS Protection	Over-charging, over-discharging, over-current, over-short-circuit
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

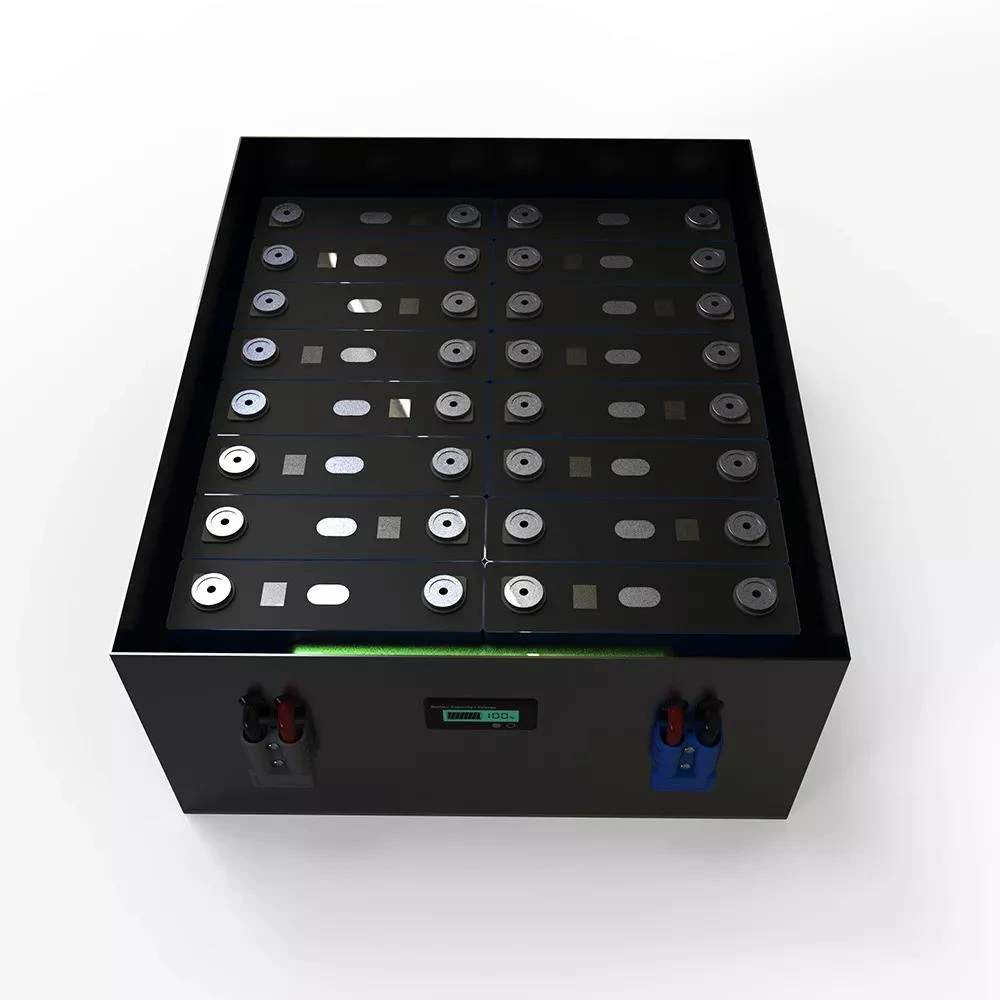

Battery Configuration	16S1P 3.2V100AH Li-FePO4 Battery
Communication Interface	CAN (Default) or RS485 or RS232
Net Weight(single cell)	48 kg
