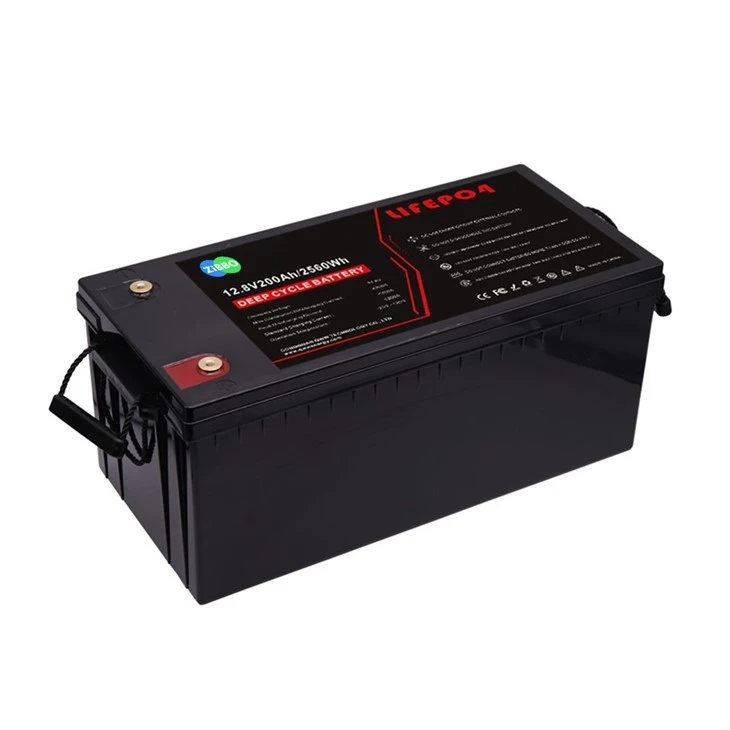

Name: China 12V 200AH Residential Deep Cycle Battery Manufacturers Factory - Customized Service - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227800928

Main Feature

1. Model: ZBPOWER 12V 200Ah

2. Cell information: LiFePO4

3. System power capacity: 2560Wh

4. System Voltage: Nominal voltage 12.8V, working voltage range (10-14.6V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

ZBPOWER 12.8V 200AH Lead Acid Replacement Battery Technical Specification

Main feature of ZBPOWER 12v 200ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* Supports 4pcs* 12V Batteries connect in series to get 48V .

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

Our 12V 200Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

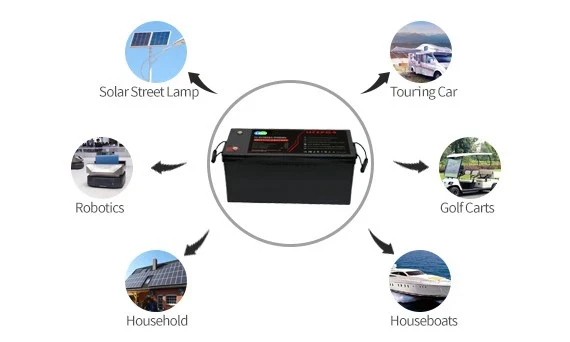

ZBPOWER 12.8V 150AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: How long will a 12v 200Ah lithium battery last?

A: A 200Ah lithium (LiFeP04) battery connected to a 400 watt DC load with 80% Depth of Discharge will last for almost 5 hours. A 200Ah lithium phosphate (LiFeP04) will run a 400W rated fridge for about 55 hours at a rate of 40 watts per hour.

Q: What can I run off a 200Ah lithium battery?

A: How to Calculate the Battery Capacity Required for Your Home: 48V 200ah battery is equal to 9.8 kWh or around 9600 watts. This is enough to run essential home appliances like a refrigerator, six light bulbs, a TV, and a laptop charger for 3.9 hours.

Q: Is a 200Ah lithium battery good?

A: Giant Power 200AH lithium batteries are ideal for storing solar energy, which is why they are considered one of the most popular Australian deep cycle batteries for Camping, Caravans, RV's, 4WD, Marine and 12 Volt power applications.

Q: How many 200Ah lithium battery can power a home?

A: A typical home requires about 10-20 kWh of energy per day. To calculate the number of batteries needed, you need to divide the daily energy requirement by the battery energy. For example, if your home requires 20 kWh of energy per day, you will need two 48V 200Ah lithium batteries (20 kWh / 9.6 kWh = 2.08).

Product Specifications

Nominal Voltage	12.8V
Nominal Capacity	200AH
Rated Energy	2560WH
Dimension	406173H236mm/ customized
Maximum pulse Current	400A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	14.6V
Standard Charge Current	7A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 20.6kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	4S2P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
