Name: China ZBPOWER Customized 48V 100AH Lithium Iron Phosphate Battery Packs Manufacturers Factory - ZBPOWER Technology
Brand: ZBPOWER
SKU: 231451461

We also offer 24V 48V 51.2V customized lithium iron phosphate battery with different inverter options, welcome to contact us!

Advantageous features of ZBPOWER 96V 100AH 9.6KWH Customized Energy Storage

● Ultra-compact and light weight, 1/3 smaller than lead-acid batteries and 2/3 lighter than lead-acid batteries.

● Built-in intelligent BMS, with battery over-voltage, over-current, temperature, short circuit and other protection functions.

● Batteries can be monitored for remaining charge, charging and discharging current, voltage, temperature and other information.

● Good discharge performance

● Communication: CAN/RS485

● Battery error diagnosis

● Battery error diagnosis Battery cycle life over 2500 cycles

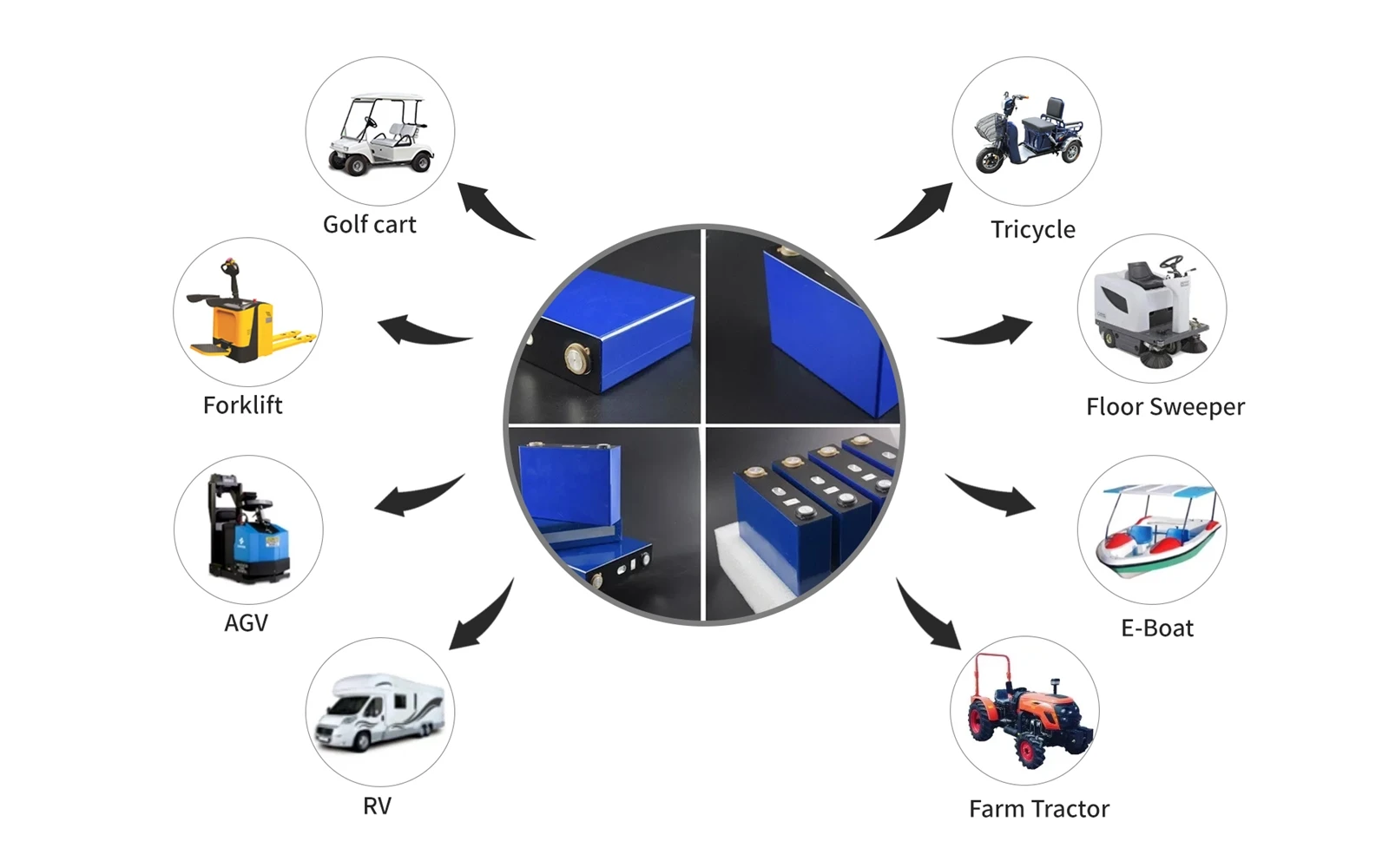

ZBPOWER Customized Energy Storage 9.6KWH Main Application Scenarios

product-1920-1200

FAQ

Q: What is LiFePO4 deep cycle battery?

A: Lithium iron phosphate batteries have the ability to deep cycle but at the same time maintain stable performance. A deep-cycle is a battery that's designed to produce steady power output over an extended period of time, discharging the battery significantly.

Q: Do I need a BMS for LiFePO4 cells?

A: A Battery Management System (BMS) is a critical component in any LiFePO4 battery system. It ensures the safe and efficient operation of the battery by monitoring key parameters, protecting against overcharging, over-discharging, and overheating, and balancing the cells to maintain optimal performance.

Q: What is the maximum charge current for LiFePO4 battery?

A: It is recommended to keep the charging current of LiFePO4 batteries below 0.5C, as overheating due to rapid charging can cause a negative effect on the battery. Although the current limit for your battery is 1C or higher. Lead-acid batteries are generally recommended to be charged under 0.2C.

Q: What to look for when buying LiFePO4 battery?

A: It's important to keep a few things in mind when comparing LiFePO4 batteries. These include the Battery Management System (BMS), cell grade, and how long they last. A reliable lithium battery is peace of mind (and then some).

Product Specifications

Nominal Voltage	96V
Nominal Capacity	100Ah @0.5C discharge current 25±2℃
Rated Energy	9.6KWH
Internal Impedance (1kHz AC typical, m-)	≤ 1mΩ (At 0.2C rate, 2.0V cut-off)
Dimension	395360295MM
Cycle Life	4000 Cycles @ 0.2C Charging / Discharging,Until 80% Capacity
Max. continuous charging current	100A
Max. continuous discharge current	100A
Max. pulse discharge current	200A/10S
warranty	2 years
BMS Protection	Over-charging, over-discharging, over-current, over-short-circuit
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Battery Configuration	16S2P
Communication Interface	CAN (Default) or RS485 or RS232
Net Weight(single cell)	15kg
