Powerwall 25.6V 200Ah Lithium Iron Phosphate Battery 5kwh

Powerwall 25.6V 200Ah Lithium Iron Phosphate Battery 5kwh

Details

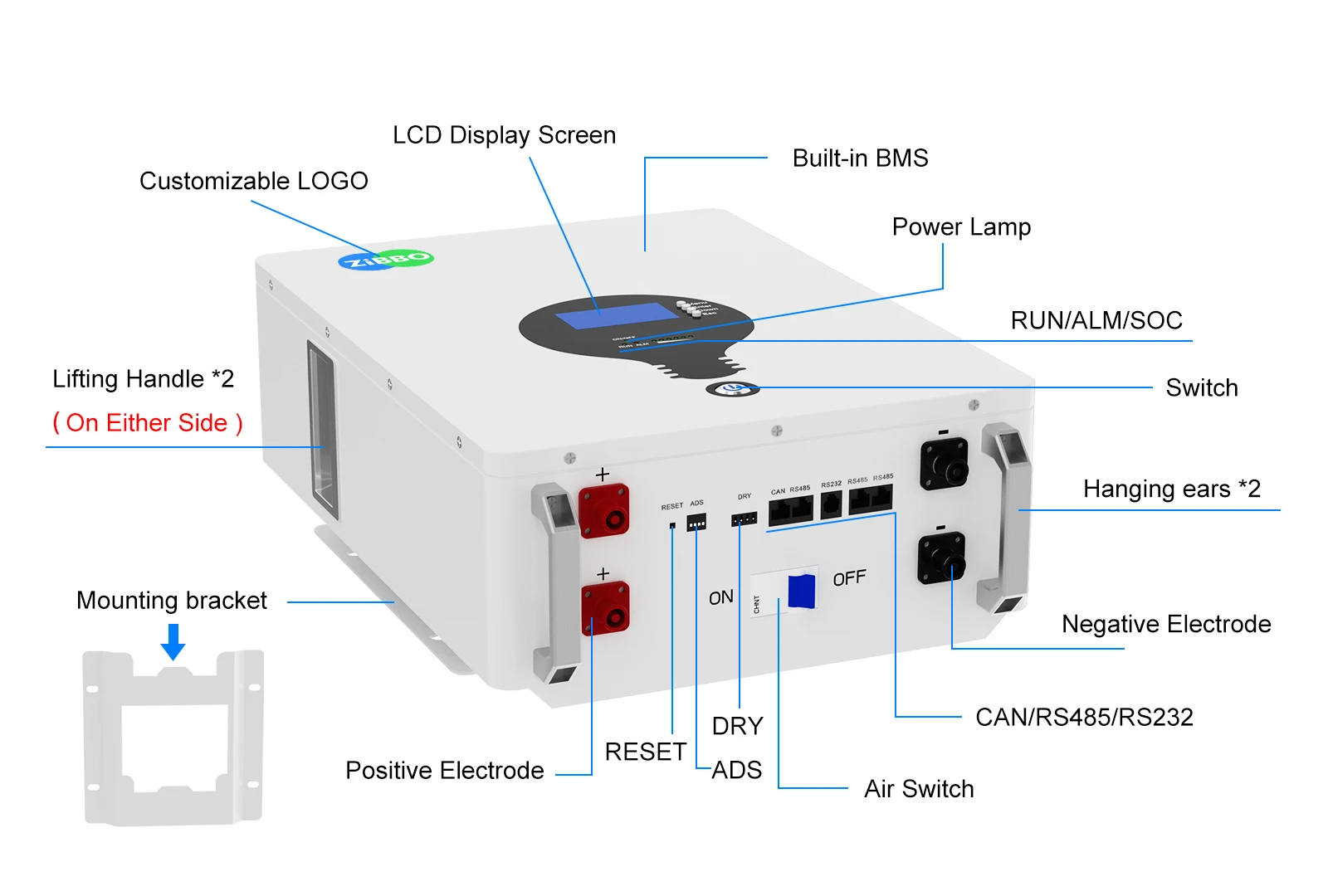

* 6000 battery cycle, 5 year warranty, 10 + years life design * Power wall design, space saving design * High density, small size, light weight * Suitable for solar energy storage systems * Optional smart BMS can communicate with different brands of hybrid solar inverters * LCD display with communication port (CAN/RS485/RS232)
Category
Wall-mounted energy storage battery
Share to
Send Inquiry
Download
Description
Technical Parameters



4

3

5



product-3856-1978







Technical Parameter



Model ZB-P256200

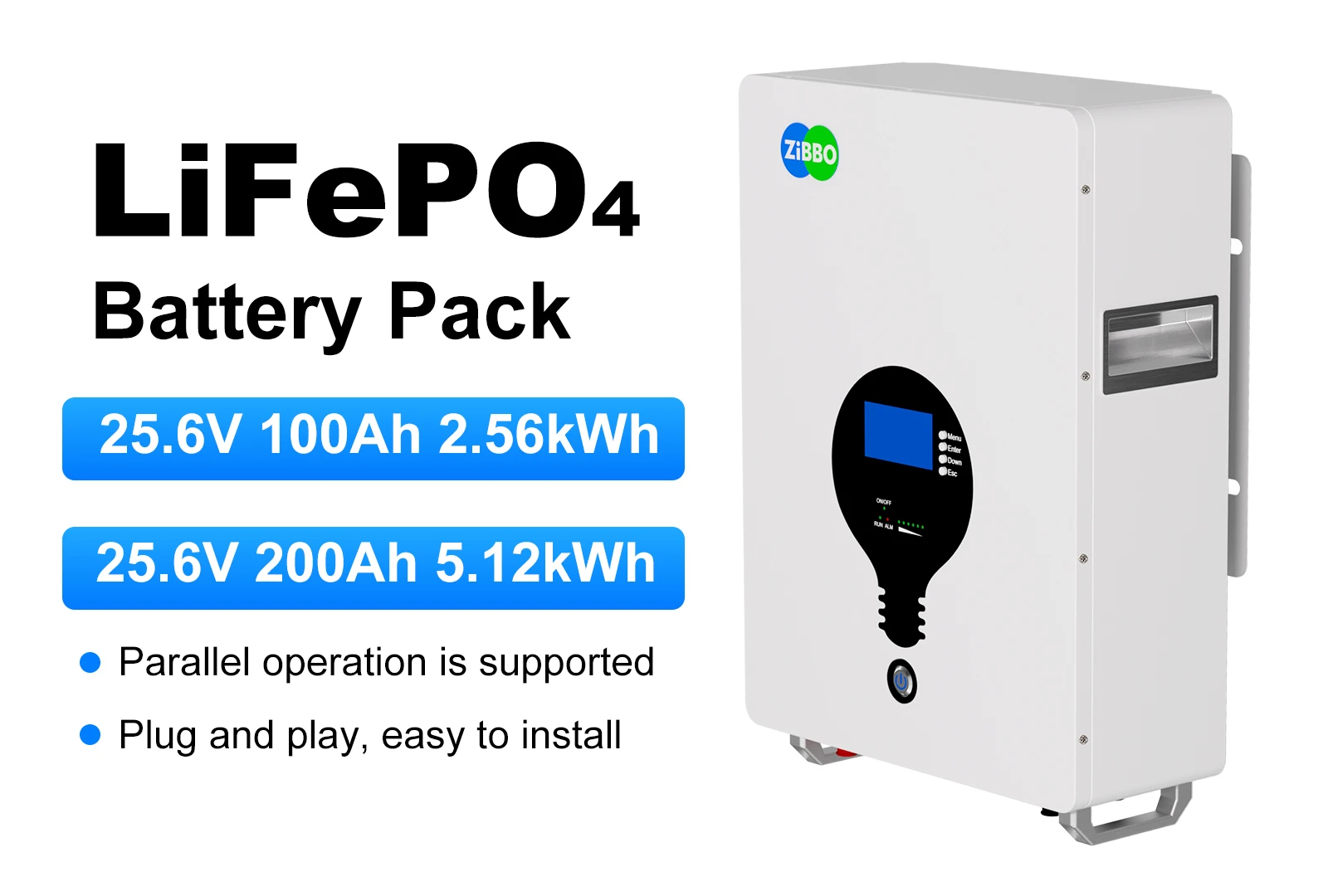

Specification 25.6V 200AH 5.12kWh
Cell Typ LiFePO4 8S2P
Working Voltage Rang 21.6V-28.8V
Output Power Max:5KW
Max Charge Curren Max:100A
Max Discharge Current Max:200A
Design Life 10 years

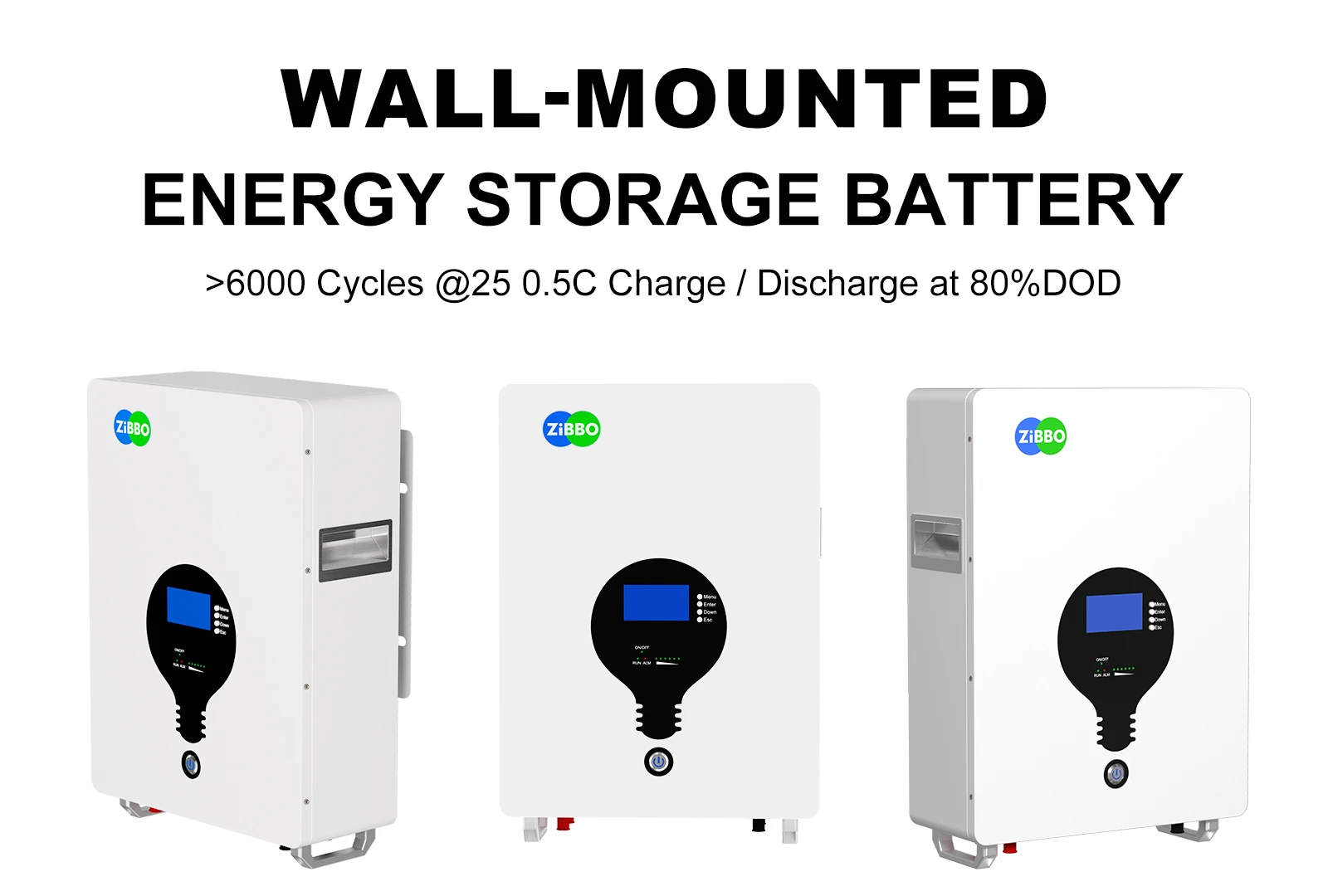

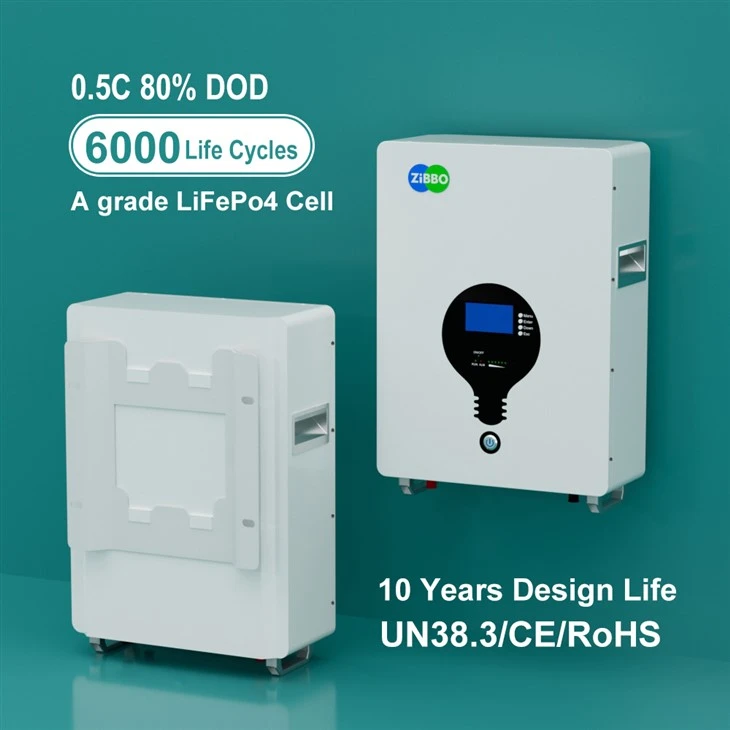

Cycles 6000@25 /0.5C/80%DOD

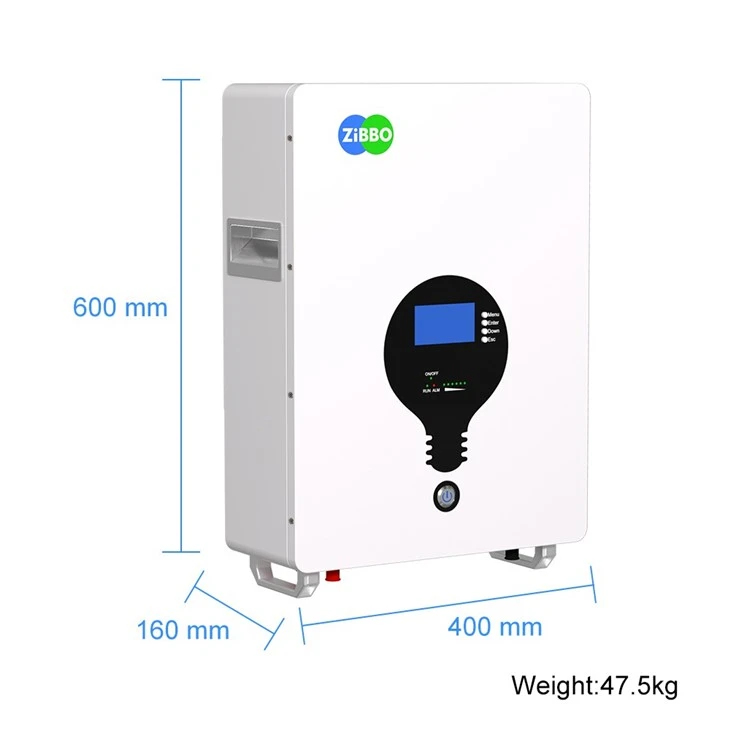

Battery Size(WxDxH) L600*W400*H160mm
Package Size(WxDxH) L715*W485*H310mm
Net Weight 47.5Kg
Gross Weight 51.0Kg

Hot Tags: powerwall 25.6v 200ah lithium iron phosphate battery 5kwh, China powerwall 25.6v 200ah lithium iron phosphate battery 5kwh manufacturers, factory, 24V 100AH RV Backup Deep Cycle Battery, 51 2V 100Ah Rack Mount Battery, 12V 150AH Marine Deep Cycle Li Ion Battery, 51 2V 300AH LiFePO4 Phosphate Rack Mountable Battery, 48V 100AH LiFePO4 Phosphate Rack Mountable Battery, 51 2V 200AH Vertical Storage Battery
