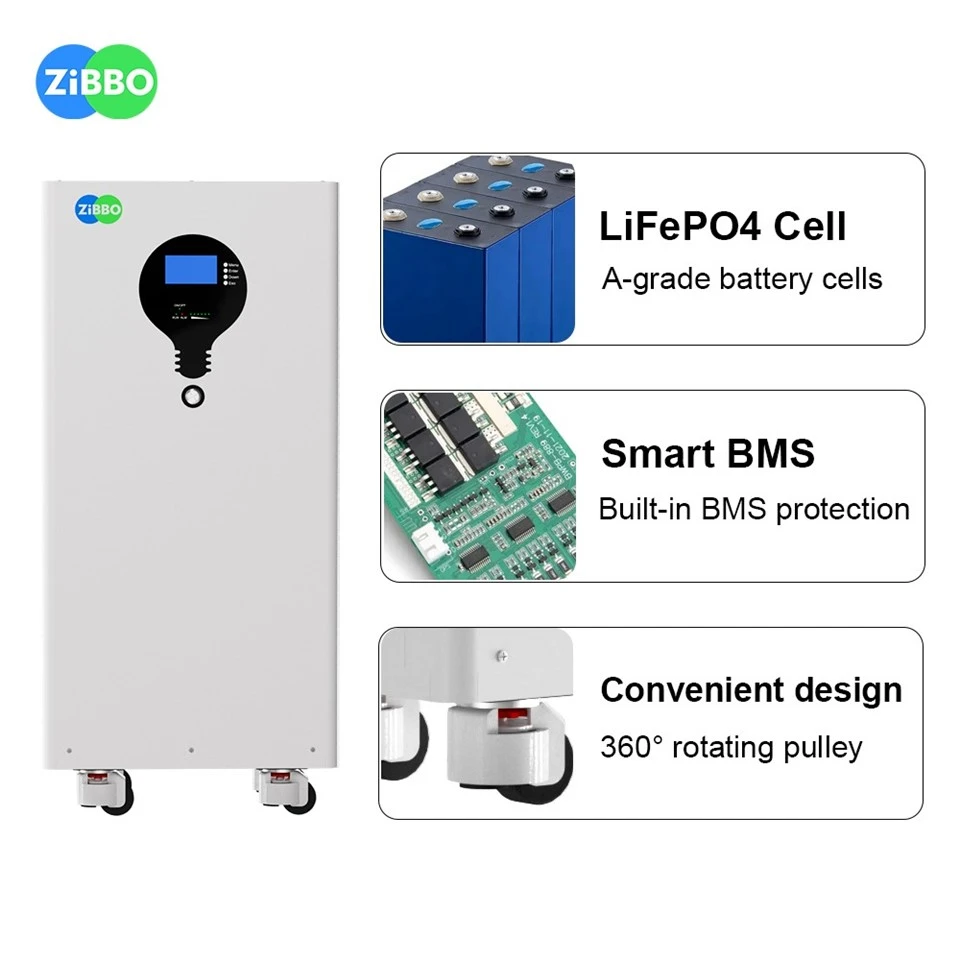

Product Features
●Large battery capacity and long working time
●Long cycle life, using high-quality LiFePO4 Cells, the cycle life is as high as 6000 times
●Intelligent battery management system
●BMS multiple protection devices can ensure the safety of products, more effectively protect the safety of equipment components in overload operation, greatly reduce the incidence of equipment failure, and make the operation of equipment more stable and reliable.
Technical Parameter
|
|
|
Model |
ZB-G512280 |
Specification |
51.2V280AH |
Rated Voltage |
51.2V |
Rated Capacity |
280AH |
Rated Energy |
14.34KWh |
Cell Typ |
LiFePO4 |
Composition |
16S1P |
Working Voltage Rang |
43.2V-57.6V |
Output Power |
BMS 200A Max:10.24KW
|
Max Charge Current |
Max:100A
|
Max Discharge Current |
Max:200A
|
Display |
LCD Display Screen |
Communication Interface |
RS485,RS232,CAN |
BMS Protection Function |
Overcurrent,Overvoltage,Overcharging,Overdischarge,Short Circuit,Over-temperature,etc |

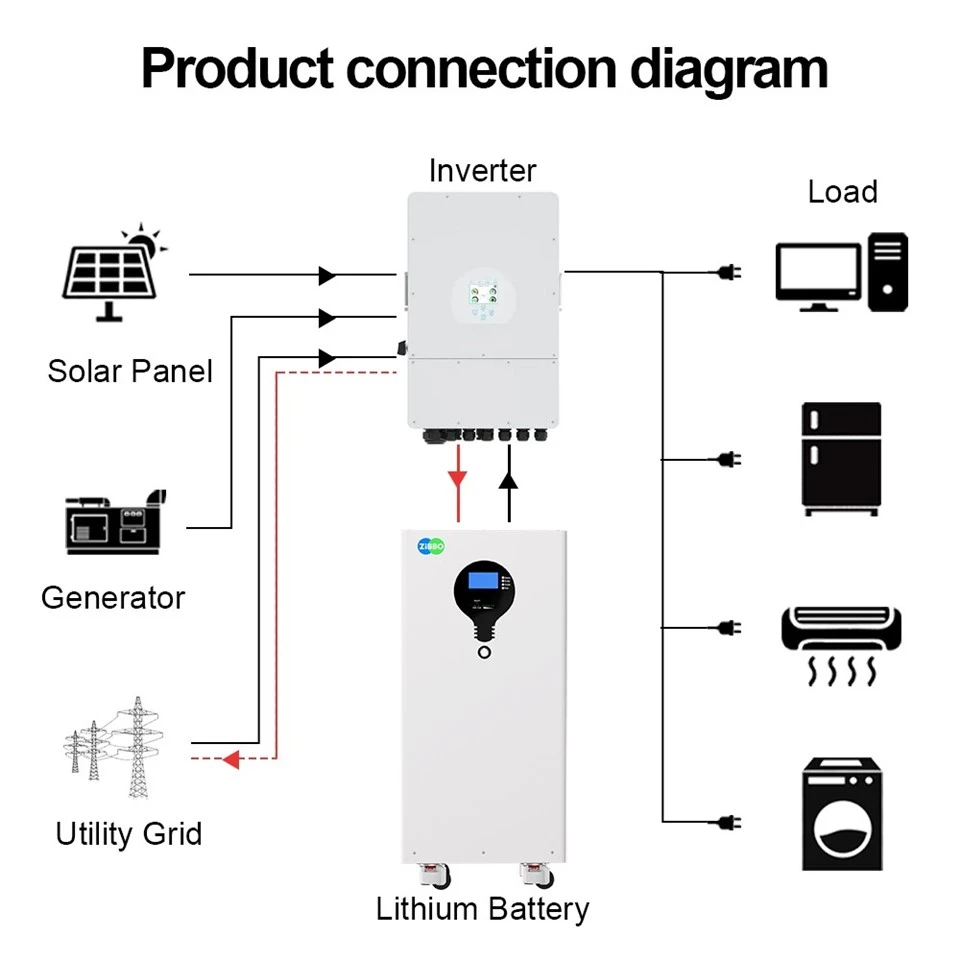

Compatible Inverters |
DEYE /Afore /MEGAREVO/SOLIS/Growatt /LUXPOWER/Voltronics
|
Change Temperature |
0℃-45℃ |
Dischange Temperature |
-20℃-65℃ |
Storage Temperature |
-10℃-45℃ |
Cooling Method |
Natural Cooling |
Design Life |
10 years |
Cycles |
10000@25℃ /0.5C/80%DOD |

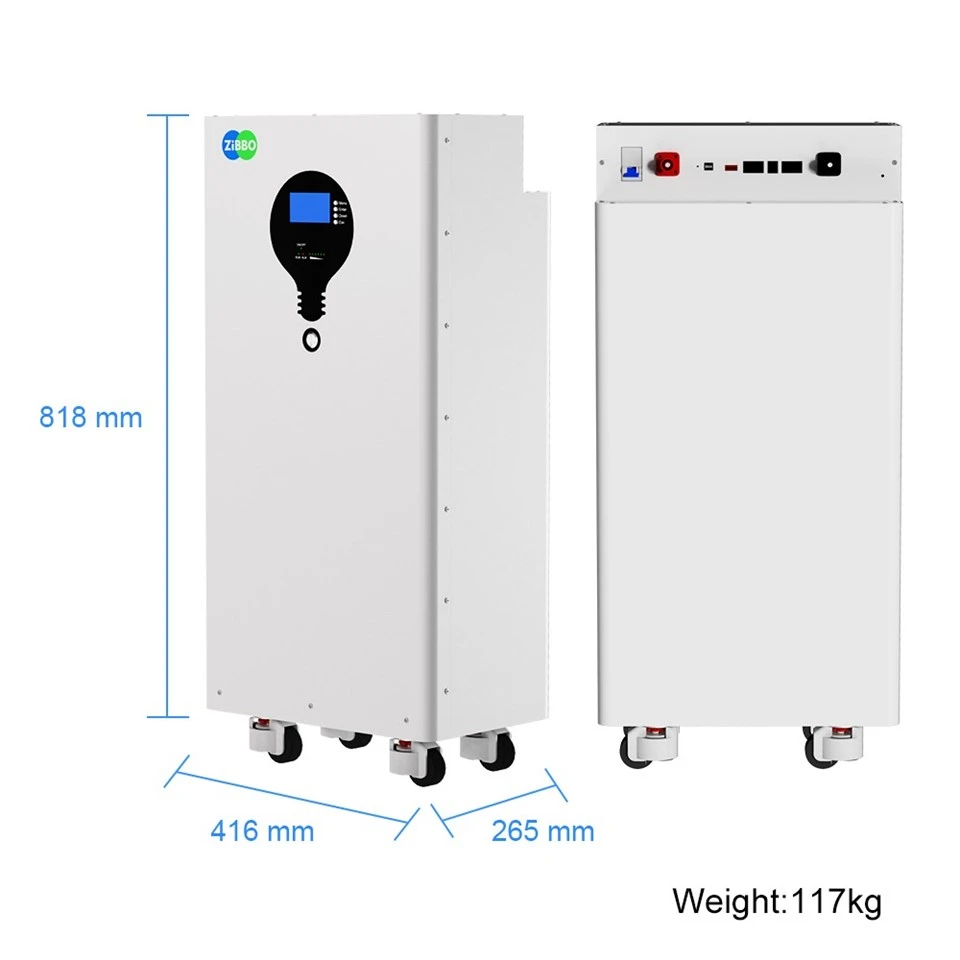

Battery Size(WxDxH) |
Style A-L416*W265*H818mm/Style B-L480*W450*H725mm |
Package Size(WxDxH) |
Style A-L470*W330*H1000mm/Style B-L535*W515*H910mm |
Net Weight |
117Kg |
Gross Weight |
132Kg |
Size and Weight for reference only |
|
