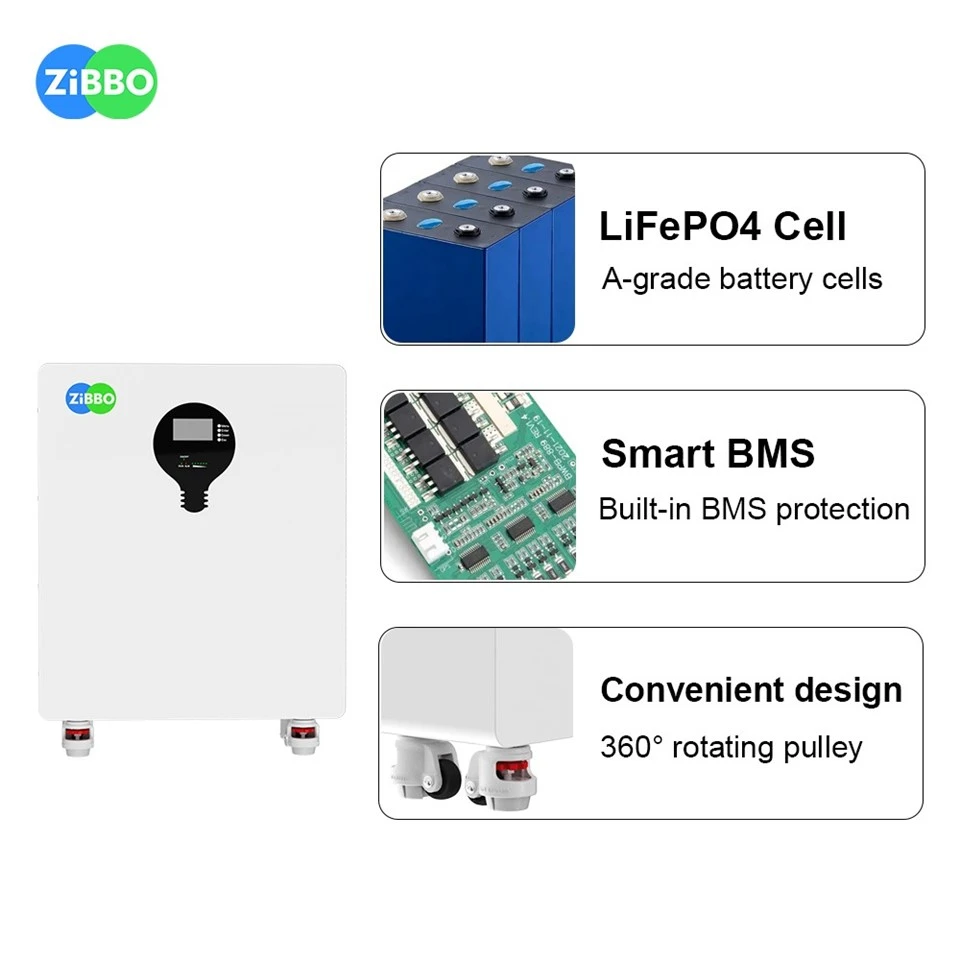

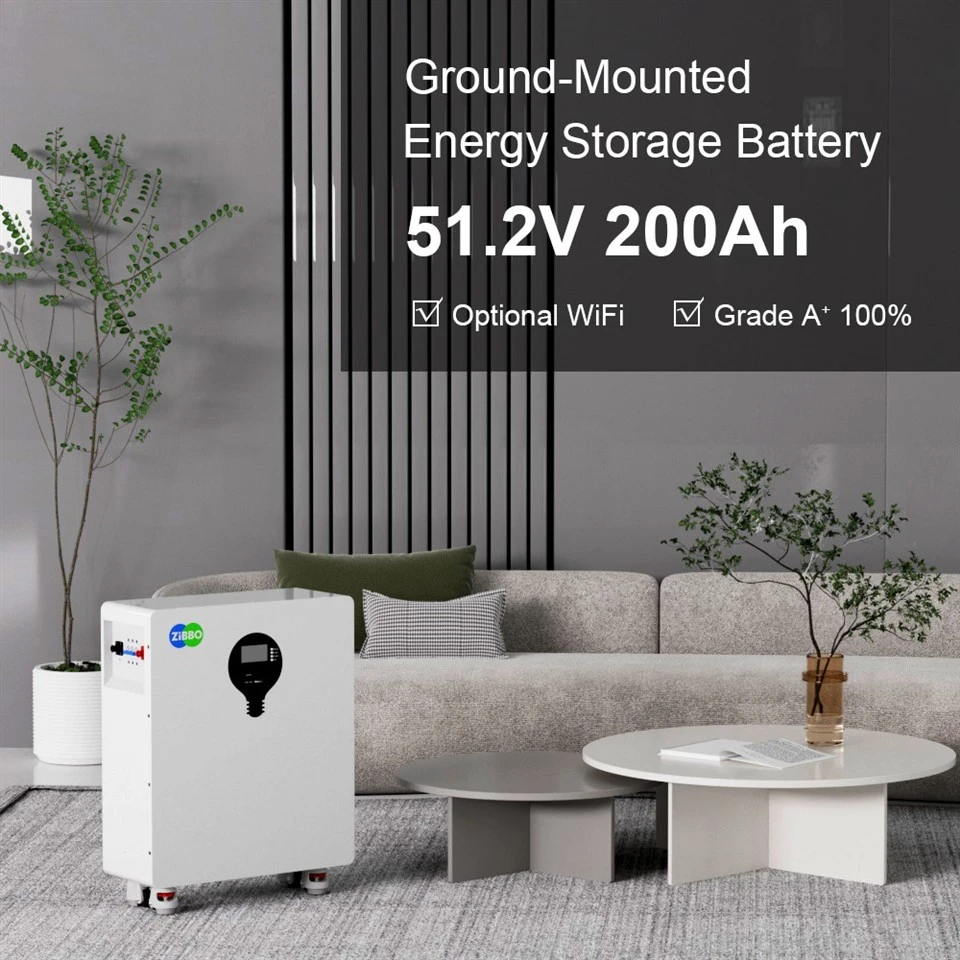

Product Features

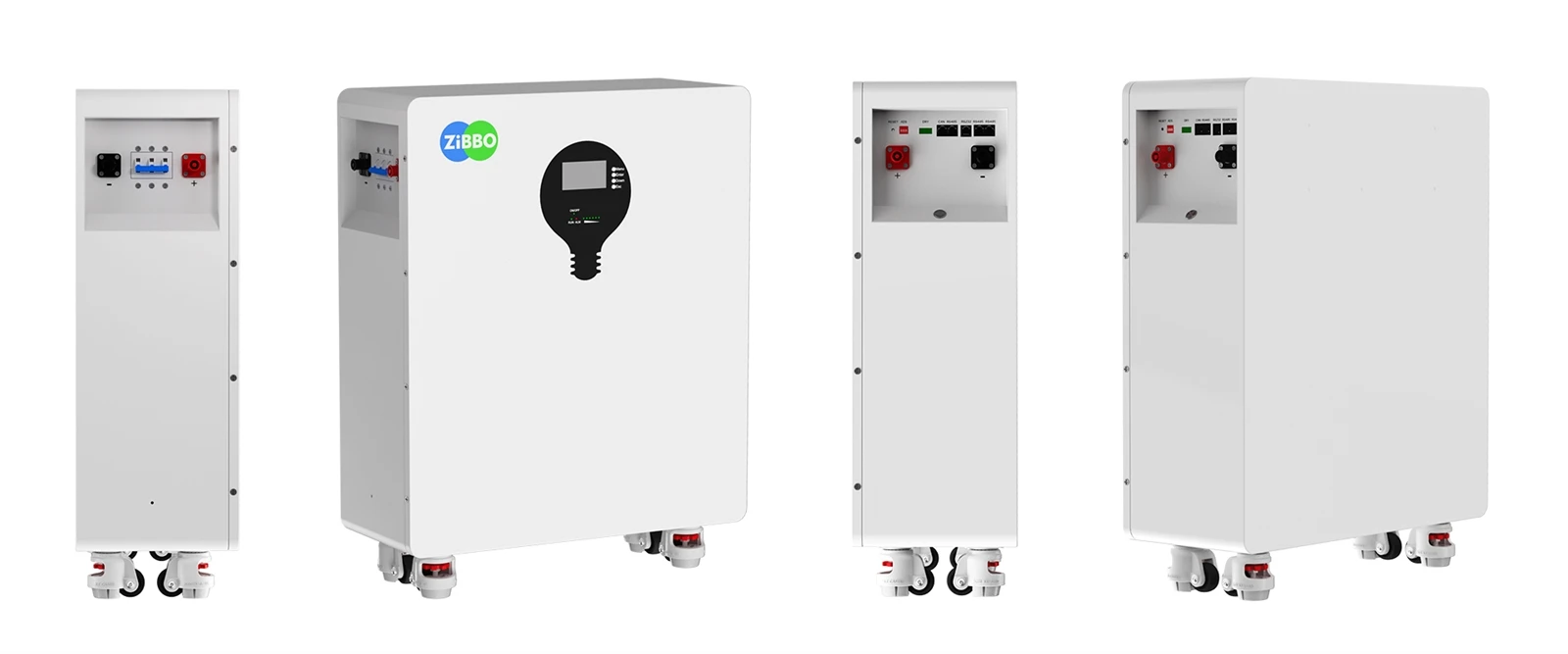

Portability: It has wheels, this battery can be easily moved from one place to another, making it ideal for applications that require frequent changes of location.
Flexibility: Can be quickly deployed when needed, suitable for temporary power needs, such as outdoor activities, emergency rescue, etc.
Versatility: In addition to being a backup power source, it can also integrate other functions such as charging stations, lighting equipment, etc.
Product parameters
Model |
ZB-G48200 |
ZB-G512200 |
ZB-G512230 |
Specification |
48V200AH |
51.2V200AH |
51.2V230AH |
Rated Voltage |
48V |
51.2V |
|
Rated Capacity |
200AH |
230AH |
|
Rated Energy |
9.6KWh |
10.24KWh |
11.78KWh |
Cell Typ |
LiFePO4 |
||
Composition |
15S1P |
16S1P |
|
Working Voltage Rang |
40.5V-54V |
43.2V-57.6V |
|
Output Power |
Max:10KW |
||
Max Charge Current |
Max:100A |
||
Max Discharge Current |
Max:200A |
||
Display |
LCD Display Screen |
||
Communication Interface |
RS485,RS232,CAN |
||
BMS Protection Function |
Overcurrent,Overvoltage,Overcharging,Overdischarge,Short Circuit,Over-temperature,etc |
||

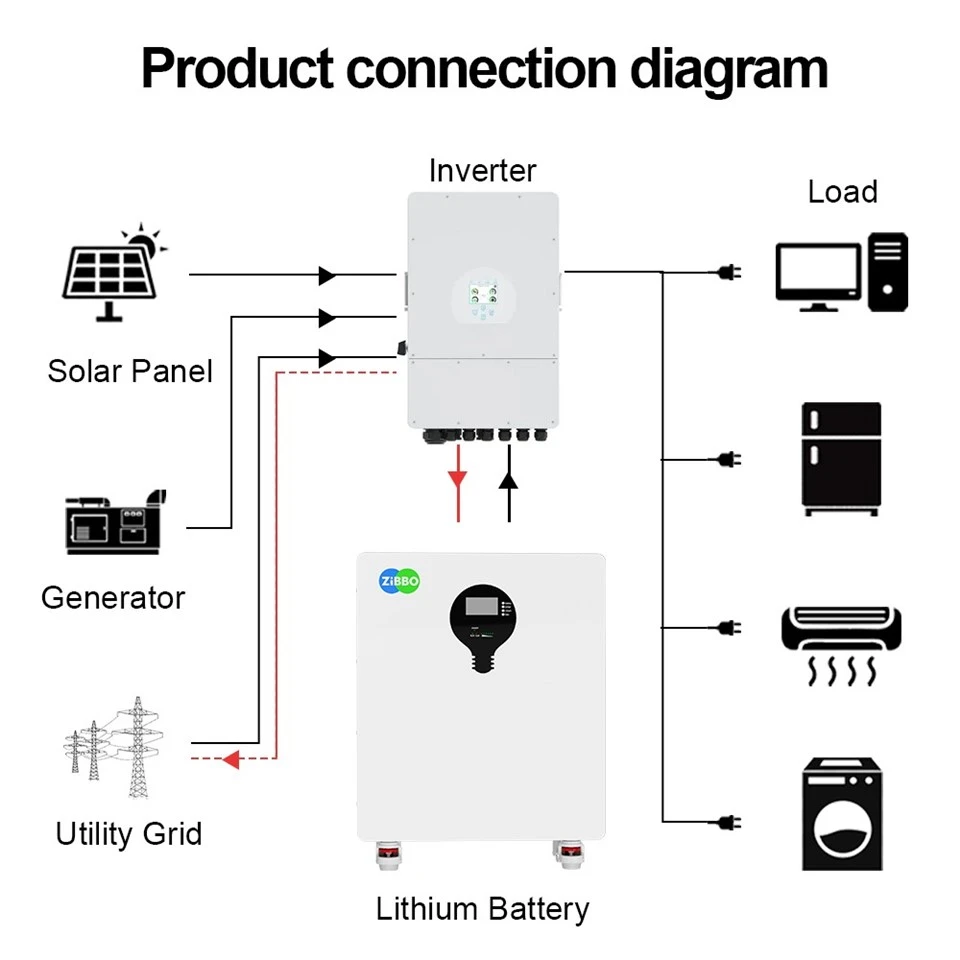

Compatible Inverters |
DEYE /Afore /MEGAREVO/SOLIS/Growatt /LUXPOWER/Voltronics
|
||
Change Temperature |
0℃-45℃ |
||
Dischange Temperature |
-20℃-65℃ |
||
Storage Temperature |
-10℃-45℃ |
||
Cooling Method |
Natural Cooling |
||
Design Life |
10 years |
||
Cycles |
6000@25℃ /0.5C/80%DOD |
||
Battery Size(WxDxH) |
L752*W463*H230MM |
||
Package Size(WxDxH) |
L830*545*330MM |
||
Net Weight |
87.0Kg |
91.5Kg |
|
Gross Weight |
91.0Kg |
95.5Kg |
|
*Size and Weight for reference only |
|||
