ZB-AIO-512200

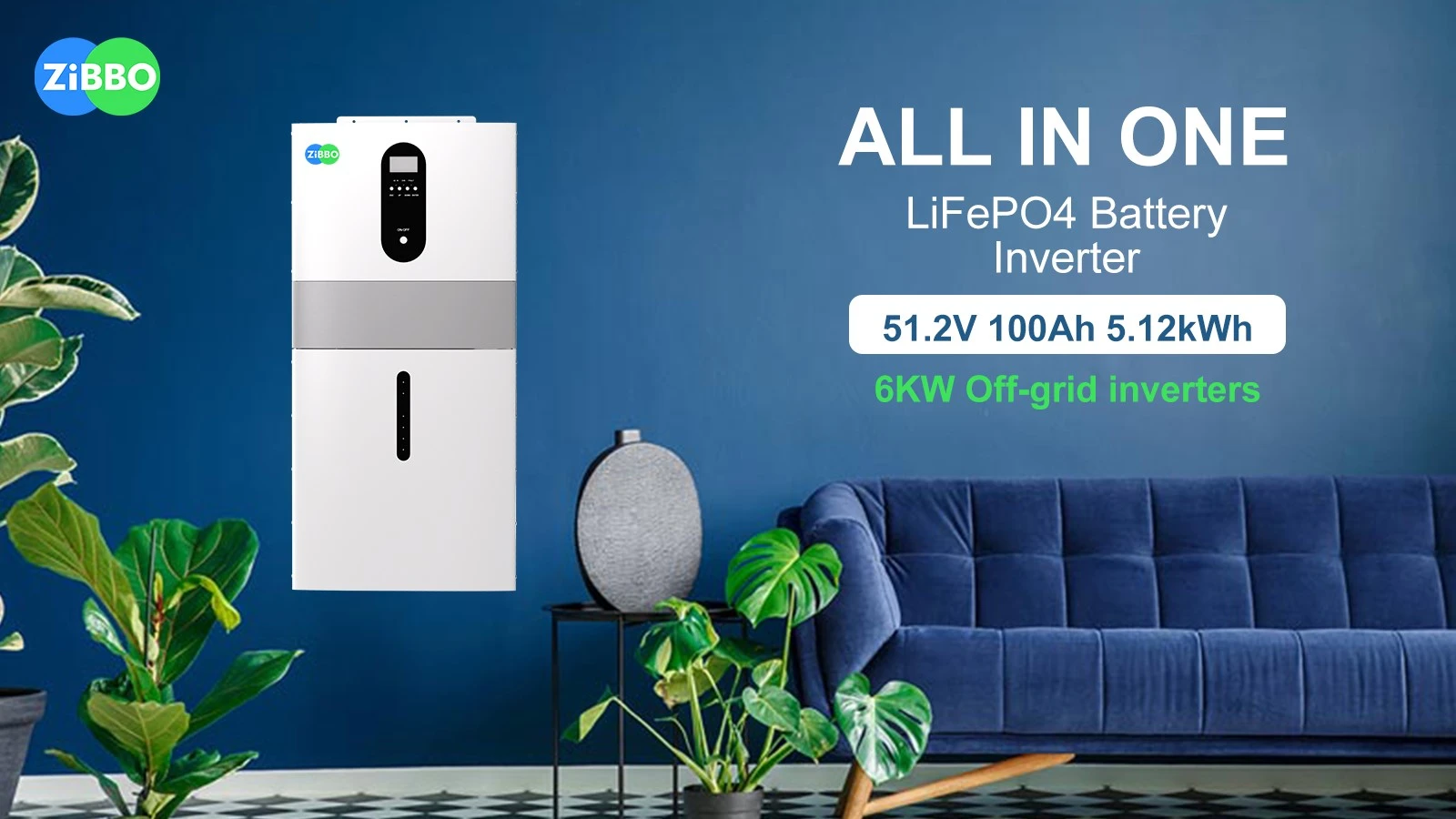

All-in-one 48V/51.2V 100Ah LiFePO4 battery +6KW off-grid inverter
Mounting method:
Wall mounted battery. By mounting this lithium iron phosphate battery on the wall, you can make efficient use of your wall space, freeing up valuable floor space in your home or office for other uses.
Built-in intelligent BMS management system:
monitors and protects the battery from overcharge/discharge and overheating. This ensures battery life and ensures safe and efficient operation.
Honor and qualification
Official certification, professional after sales service.

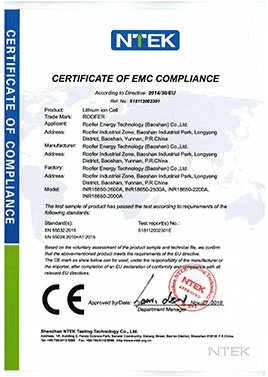

CE

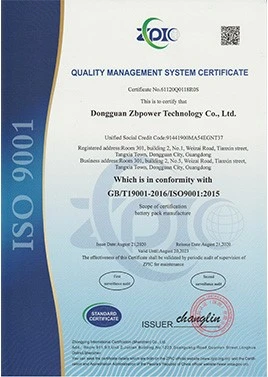

ISO19001

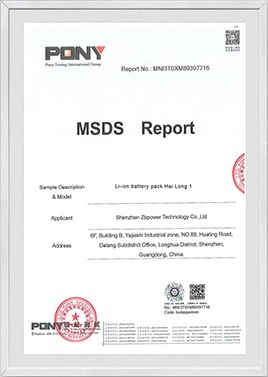

MSDS
UN38.3

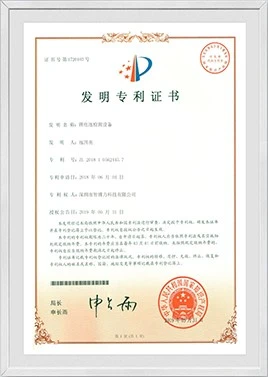

Patent certificate
Technical Parameter
| Product Model | ZB-AIO-512200 |
| Module Capacity | 51.2V100AH*2 |
| Cell Typ | LiFePO4 |
| Argument | 6KW+5KWH |
| Photovoltaic Input | Max:5500W/DC120-DC500V |
| AC Input | 220-240V/50Hz/60Hz |
| Output Waveform | Pure Sine Wave |
| Output Power | Max:5.5KW |
| Max Charge Current | 80A |
| MPPT efficiency | >98% |
| Display | LCD Display Screen |
| Communication Interface | RS485,RS232,CAN |
| Protection class | IP21 |
| Installation | Foor Standing |
| Battery&Inverter Size | 500*158*1576mm |
| Package Size(WxDxH) | Single Battery Size 598*560*218mm / SingleInverter Size 560*560*218mm |
| Net Weight | 104.6Kg+47.3Kg |
| Gross Weight | 110.6Kg+50.4Kg |
