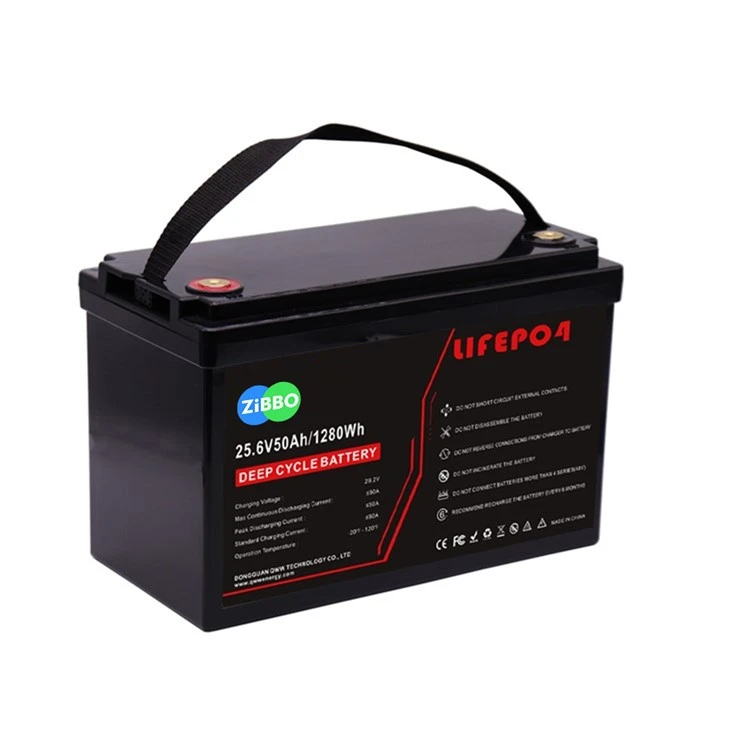

Name: China 24V 50AH Deep Cycle Rechargeable Battery Manufacturers Factory - Customized Service - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227801709

Main Feature

1. Model: ZBPOWER 24V 50Ah

2. Cell information: LiFePO4

3. System power capacity: 1280Wh

4. System Voltage: Nominal voltage 25.6V, working voltage range (21.6V-28.8V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

ZBPOWER 24V 50AH Lead Acid Replacement Battery Technical Specification

Main feature of ZBPOWER 24v 50Ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

Our 24V 50Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

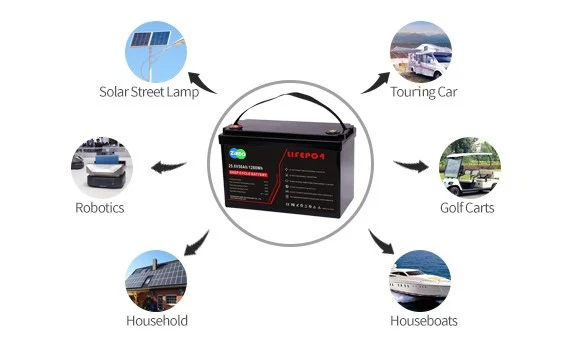

ZBPOWER 24V 50AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: Do lithium batteries have to be fully charged?

A: Lithium batteries do not have memory effect, which also means that "full" is not a necessary option. Therefore, the use of lithium batteries, do not need to be full every time, with the use of charging, shallow charging and discharging the best, to avoid over-charging and over-discharging, daily driving to try to keep the power between 20-90%, at the same time, do not have to be overly obsessed with the fast charging or slow charging, a combination of the two can be!

Q: Do I have to fully charge my lithium ternary battery?

A: In terms of full state, Li-ion ternary battery is not recommended to be full due to its high energy density and high charge/discharge rate to avoid battery aging and safety risks. The lithium iron phosphate battery, due to its relatively low voltage characteristics, needs to be filled regularly to improve battery life and performance stability.

Q: Is LiFePO4 battery better than lithium?

A: LiFePO4 batteries are the safest of the lithium batteries, because they will not catch fire, and won't even overheat. Even if you puncture the battery it will not catch fire. This is a massive upgrade over other lithium batteries, which can overheat and catch fire.

Product Specifications

Nominal Voltage	25.6V
Nominal Capacity	50AH
Rated Energy	1280WH
Dimension	250173H245mm/ customized
Maximum pulse Current	44A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	25.6V
Standard Charge Current	10A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 12Kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	8S1P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
