comparison of product parameters
1. Built-in intelligent BMS function to detect battery usage.2. High capacity ratio, compact design, and lighter weight.
3. A-grade battery cells have A long service life cycle.
4. A wider temperature range.
5. Lithium-ion batteries require no maintenance, saving maintenance costs.
6. Alarm and control output for extreme conditions such as overvoltage, undervoltage, high temperature, low temperature, overcurrent and short circuit.
About ZBPOWER

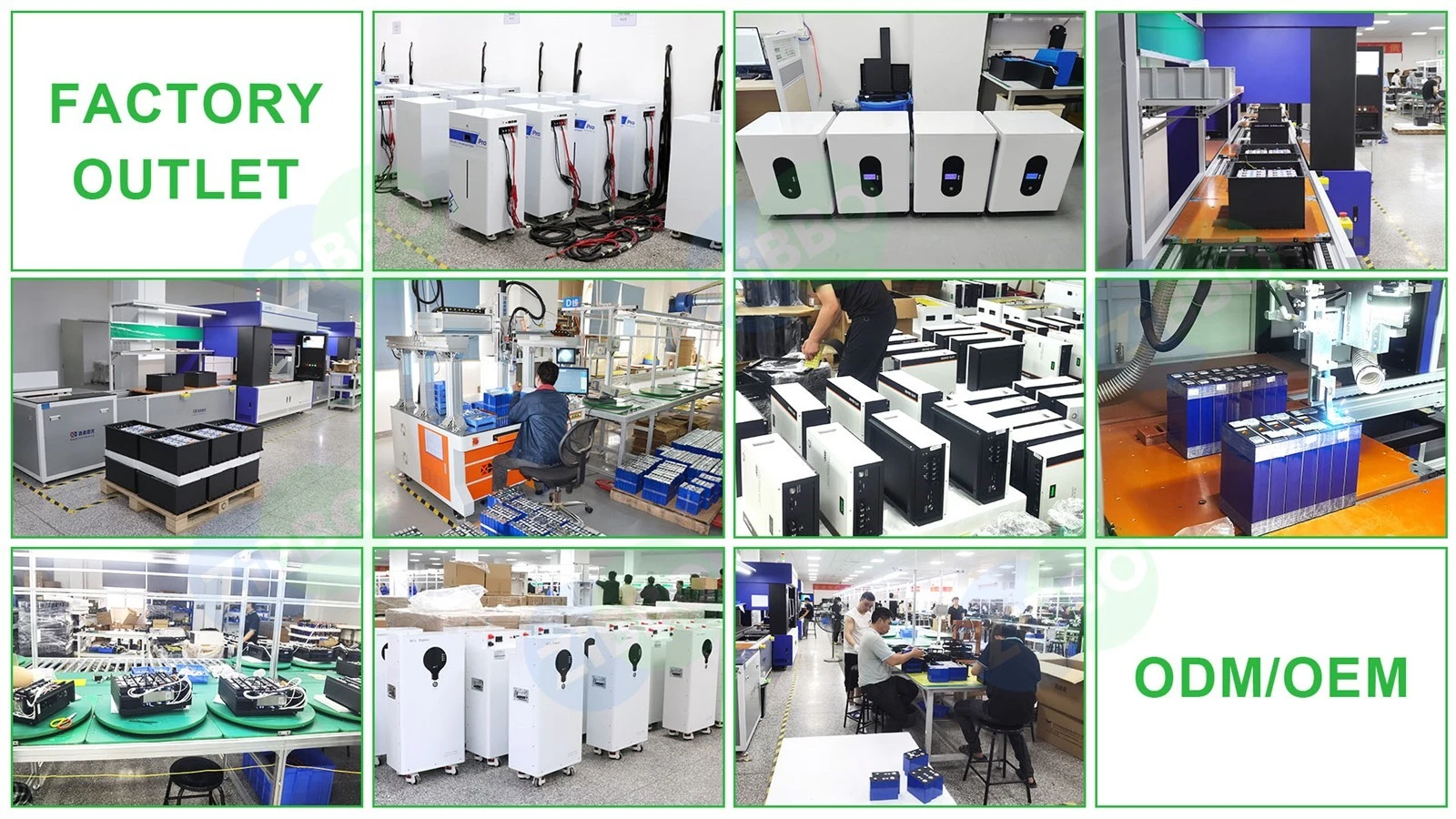

As a lithium battery factory with over 10 years of experience, our production lines operate at high speed every day to meet customer orders. We continuously produce rack-mounted batteries, wall-mounted batteries, stacked batteries and integrated energy storage systems. With the progress of The Times, human needs are becoming increasingly diverse, and ZBPOWER TECHNOLOGY is closely following the pace of human progress. If you have energy demands for OEM/ODM, please feel free to contact us at any time.
FAQ
Q 1 : How is your technical support?
A 1: We offer lifetime online support via Whatsapp/ Skype/ wechat/email. For any issues after delivery, we will provide you with video calls at any time. If necessary, our engineers will also go overseas to assist our customers.
Q 2 : Where are lithium-ion batteries suitable for use?
A 2 : Lithium-ion batteries can be used wherever you want to store energy. It is used in inverters, recreational vehicles, ships, mountainous areas, households, industries, etc.
Q 3 : How is your battery warranty?
A 3 : Lithium-ion batteries are guaranteed for 5 to 10 years.
Q 4 : Are lithium-ion batteries safe?
A 4 : The ZBPOWER lithium-ion battery features BMS functionality and has passed safety tests such as overcharge, overdischarge, over-temperature, short circuit, and needle puncture. Under no circumstances will it catch fire or explode. Ensure that our customers benefit;
Q 5 : How can I confirm that the battery you sent me is of high quality?
A 6 : All of our batteries are Grade A. No matter how many you order, we will test each product before sending them out.
Q 6 : Can my logo be printed on the battery?
A 6 : Yes, we accept OEM/ODM and can provide customized services for our partners.
Product Specifications
| Technical Parameter | ||
| Model | ZB-P256100 | ZB-P256200 |
| Specification | 25.6V100AH | 25.6V200AH |
| Rated Voltage | 25.6V | |
| Rated Capacity | 100AH | 200AH |
| Rated Energy | 2.56KWh | 5.12KWh |
| Cell Typ | LiFePO4 | |
| Composition | 8S1P | 8S2P |
| Working Voltage Rang | 21.6V-28.8V | |
| Output Power | Max:2.5KW | Max:5KW |
| Max Charge Current | Max:50A | Max:100A |
| Max Discharge Current | Max:100A | Max:200A |
| Display | LCD Display Screen | |
| Communication Interface | RS485,RS232,CAN | |
| BMS Protection Function | Overcurrent,Overvoltage,Overcharging,Overdischarge,Short Circuit,Over-temperature,etc | |
| Compatible Inverters | DEYE /Afore /MEGAREVO/SOLIS/Growatt /LUXPOWER/Voltronics Goodwe/SMA/Victron/SOROTEC/MUST/etc. |
|
| Change Temperature | 0℃-45℃ | |
| Dischange Temperature | -20℃-65℃ | |
| Storage Temperature | -10℃-45℃ | |
| Cooling Method | Natural Cooling | |
| Design Life | 10 years | |
| Cycles | 6000@25℃ /0.5C/80%DOD | |
| Battery Size(WxDxH) | L480*W355*H160mm | L600*W400*H160mm |
| Package Size(WxDxH) | L560*W435*H280mm | L715*W485*H310mm |
| Net Weight | 27.5Kg | 47.5Kg |
| Gross Weight | 29.5Kg | 51.0Kg |
| *Bracket standard (removable),Size and Weight for reference only | ||
