Name: China Customized 24V 20AH Deep Cycle Battery Manufacturers Factory - Wholesale Service - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227801592

Main Feature

1. Model: ZBPOWER 24V 20Ah

2. Cell information: LiFePO4

3. System power capacity: 512Wh

4. System Voltage: Nominal voltage 12.8V, working voltage range (21.6V-28.8V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

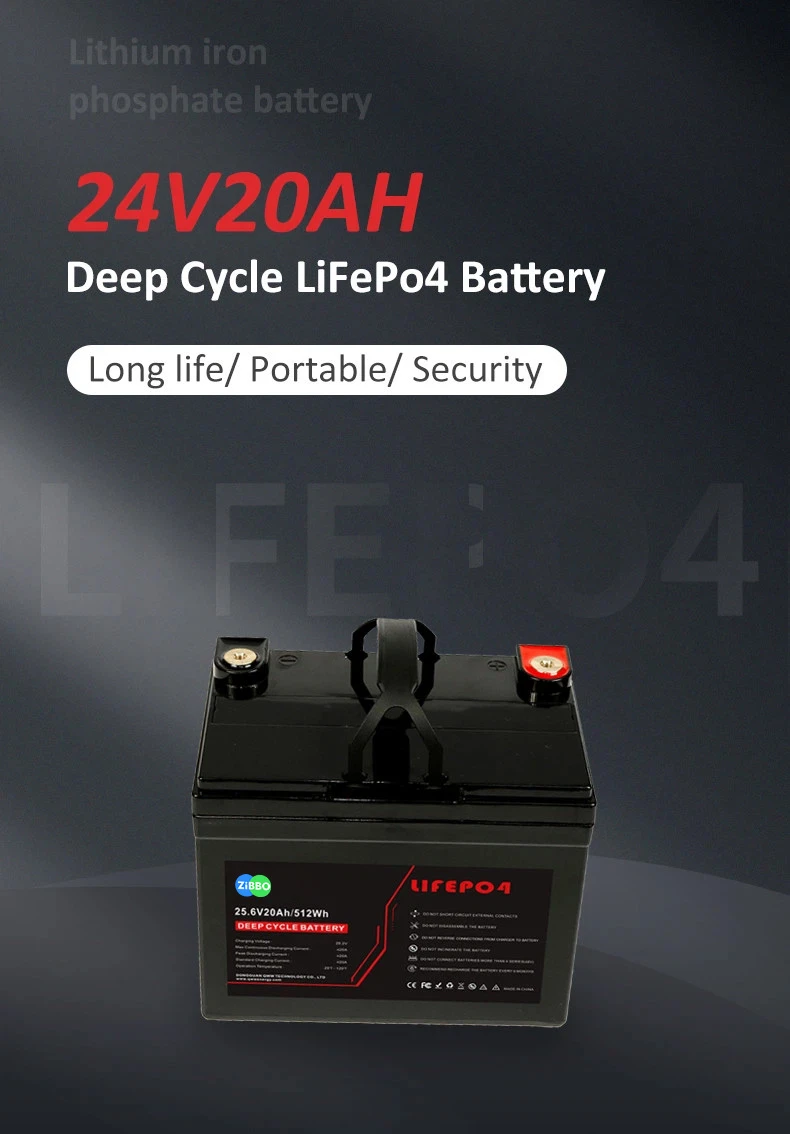

ZBPOWER 24V 20AH Lead Acid Replacement Battery Technical Specification

Main feature of ZBPOWER 24v 20Ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

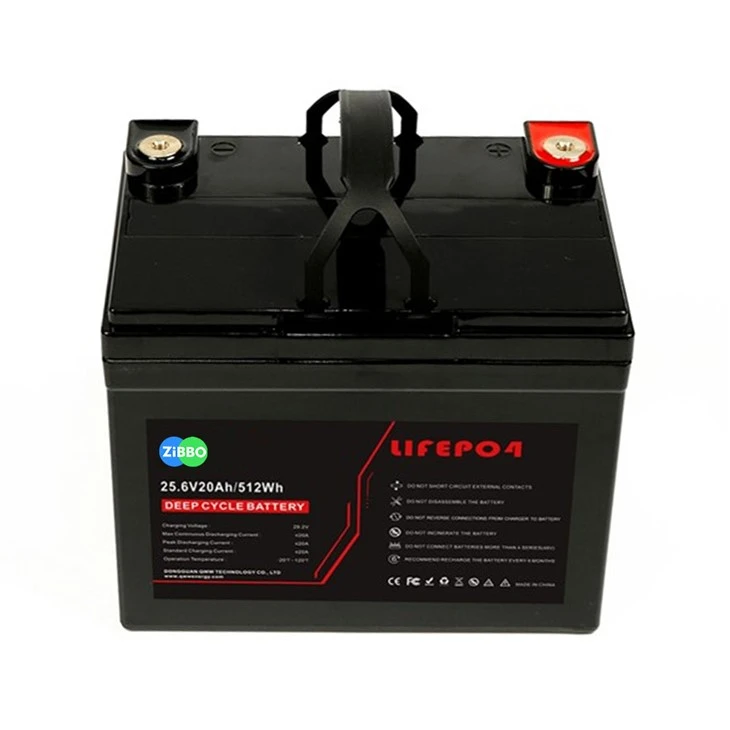

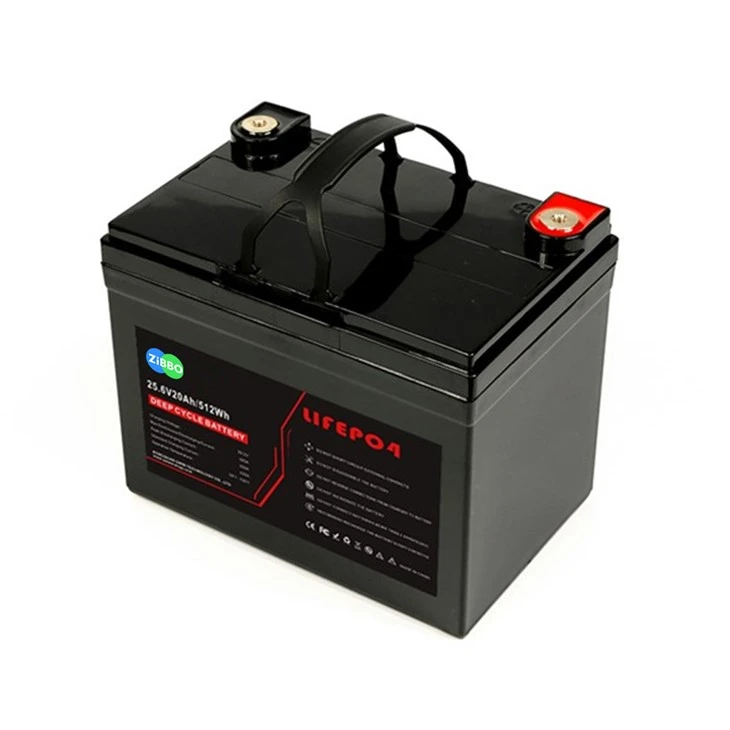

Our 24V 20Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

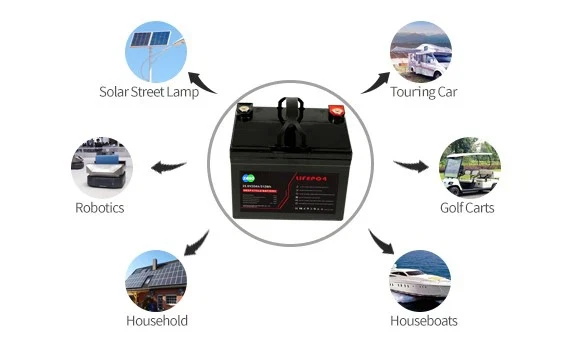

ZBPOWER 24V 20AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: How long will a 20Ah battery last?

A: We have found that our 20Ah battery powering three devices will last a minimum of 22 hours. When powering one device they last approximately 5 days. This may vary depending on how many taps a device receives and if it is being used in colder temperatures.

Q: Can I charge 2 12v batteries with a 24V charger?

A: Yes you can, especially if the two 12v batteries are identical. If they are not, you will need to be careful more regarding the state of charge.

Q: Is it better to charge batteries in series or parallel?

A: Connecting in series increases voltage, but wiring in parallel increases your battery bank capacity. The total voltage doesn't change. This means that two 12V 30Ah batteries in parallel would give you a total capacity of 60 amp hours. Voltage stays at 12 volts.

Q: Can I use a 12 volt inverter on a 24 volt battery?

A: Typically, a 12V inverter cannot be used on a 24V battery as this will damage the 12V inverter. To ensure the safety and longevity of the batteries and inverter, it is recommended that the 12V inverter be used with 12V batteries.

Product Specifications

Nominal Voltage	25.6V
Nominal Capacity	20AH
Rated Energy	512WH
Dimension	195130H154mm/ customized
Maximum pulse Current	44A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	25.6V
Standard Charge Current	10A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 4.7Kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	8S3P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
