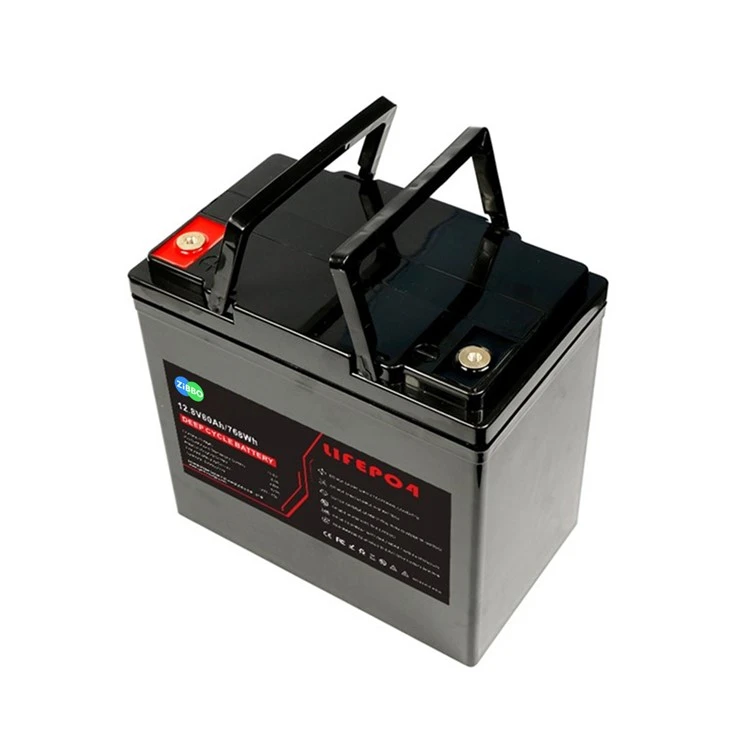

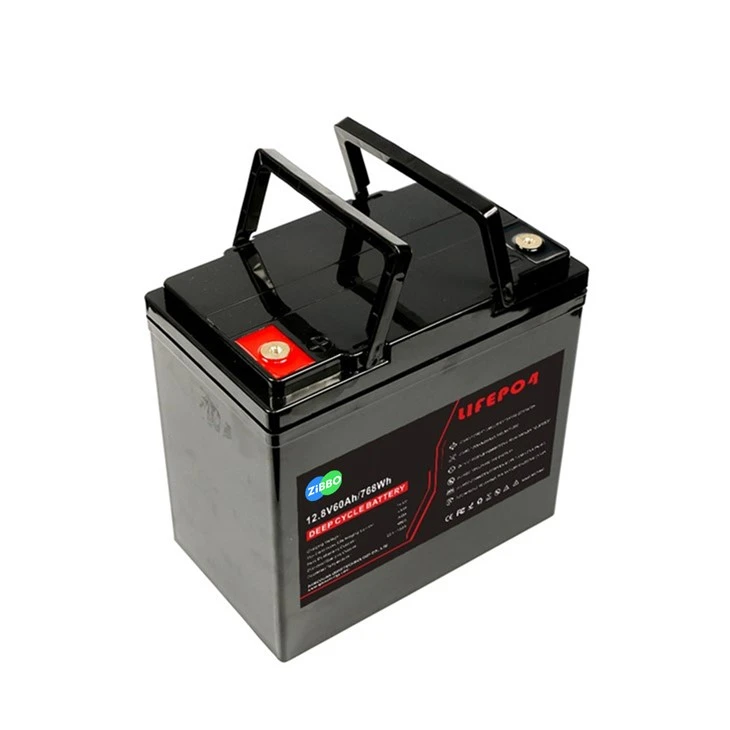

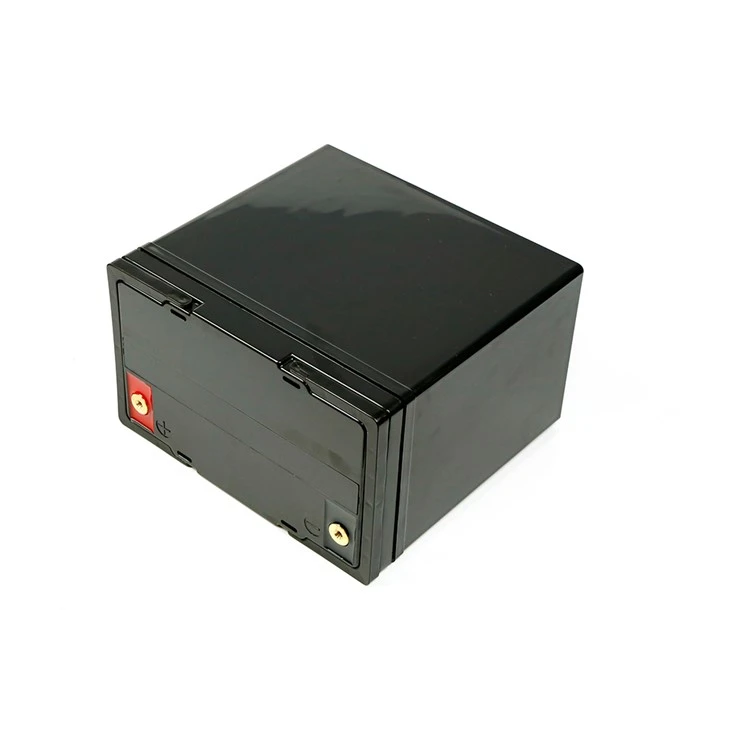

Name: China Customized 12V 60AH Li-FePO4 Battery with Display Manufacturers Factory - Good Price - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227798495

Main Feature

1. Model: ZBPOWER 12V 60Ah

2. Cell information: LiFePO4

3. System power capacity: 768Wh

4. System Voltage: Nominal voltage 12.8V, working voltage range (10-14.6V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

ZBPOWER 12.8V 60AH Lead Acid Replacement Battery Technical Specification

product-2048-1496

Main feature of ZBPOWER 12.8v 60ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* Supports 4pcs* 12V Batteries connect in series to get 48V .

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

Our 12.8V 60Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

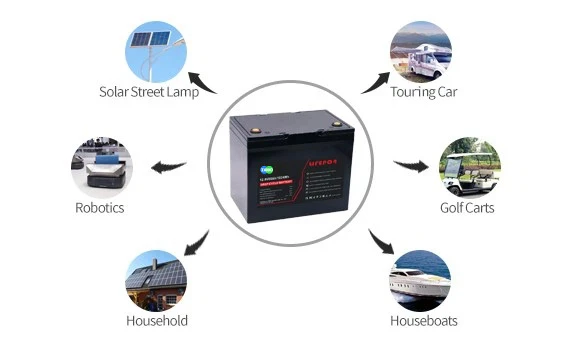

ZBPOWER 12.8V 60AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: How long does it take to charge a 10AH lithium battery?

A: Can be wired in series or parallel to create 24V, 36V, or 48V or higher capacity power systems. Charges a 10Ah Battery in 3 hrs!

Q: Can I charge a LiFePO4 battery with a solar panel?

A: Yes, LiFePO4 batteries are well-suited for off-grid solar systems due to their high energy density, long cycle life, and superior performance.

Q: What is the difference between Li ion and LiFePO4 solar batteries?

A: In most ways, LiFePO4 batteries are better than comparable lithium-ion batteries. Lithium iron phosphate batteries are less prone to combustion and thermal runaway, making them safer for home use. Plus, a longer cycle life means the LiFePO4 batteries will outlast lithium-ion for up to five times longer.

Q: What are the disadvantages of LiFePO4 battery?

A: LiFePO4 batteries offer several advantages, including safety, long cycle life, high power density, wide temperature range, and environmental friendliness. However, they also have some disadvantages, such as lower energy density, higher cost, and limited availability.

Q: What is the lifespan of a LiFePO4 battery?

A: Lifepo4 batteries can last 5 – 10 years when properly maintained. Note that, lithium-iron phosphate batteries last longer based on maintenance. Generally speaking, to prevent poor performance, you need to avoid extreme overcharging or your battery will pack up sooner than expected.

Product Specifications

Model	ZB-12V60AH
Nominal Voltage	12.8V
Nominal Capacity	60AH
Rated Energy	768WH
Dimension	195133H171mm/ customized
Maximum pulse Current	100A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	14.6V
Standard Charge Current	7A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 5.3kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	4S10P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
