Name: China 12V 80AH Lithium Iron Phosphate Deep Cycle Battery Manufacturers Factory - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227799059

Main Feature

1. Model: ZBPOWER 12V 80Ah

2. Cell information: LiFePO4

3. System power capacity: 1024Wh

4. System Voltage: Nominal voltage 12.8V, working voltage range (10-14.6V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

ZBPOWER 12.8V 80AH Lead Acid Replacement Battery Technical Specification

Main feature of ZBPOWER 12.8v 80ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* Supports 4pcs* 12V Batteries connect in series to get 48V .

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

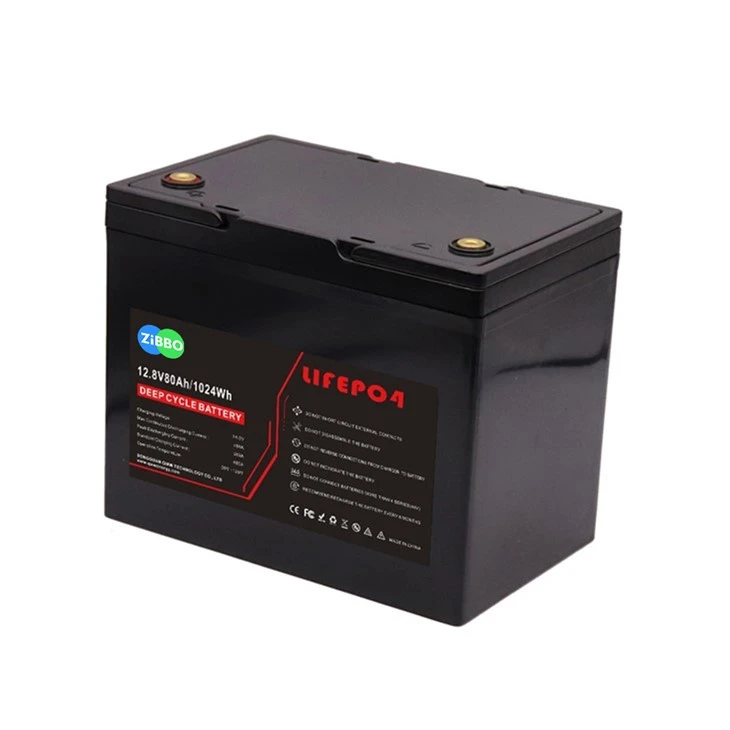

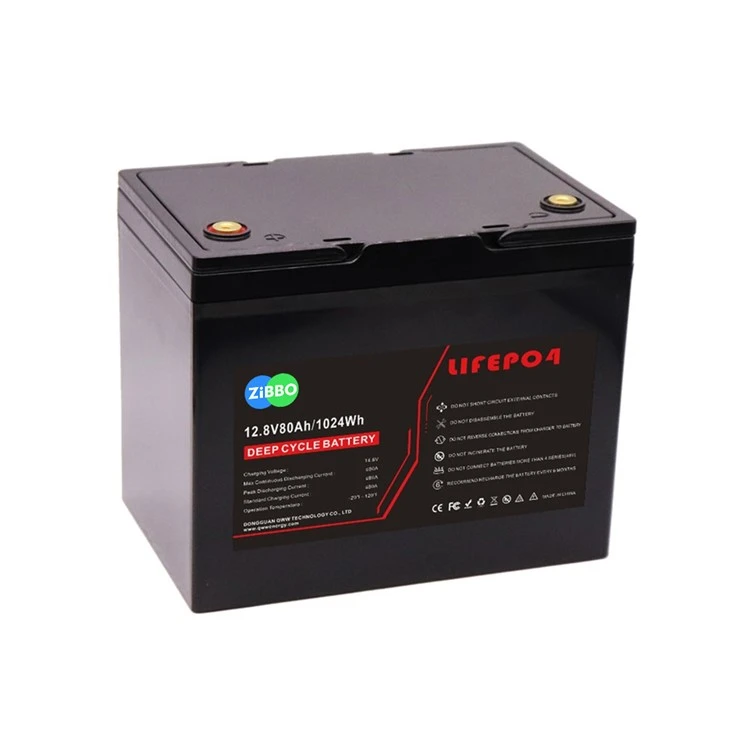

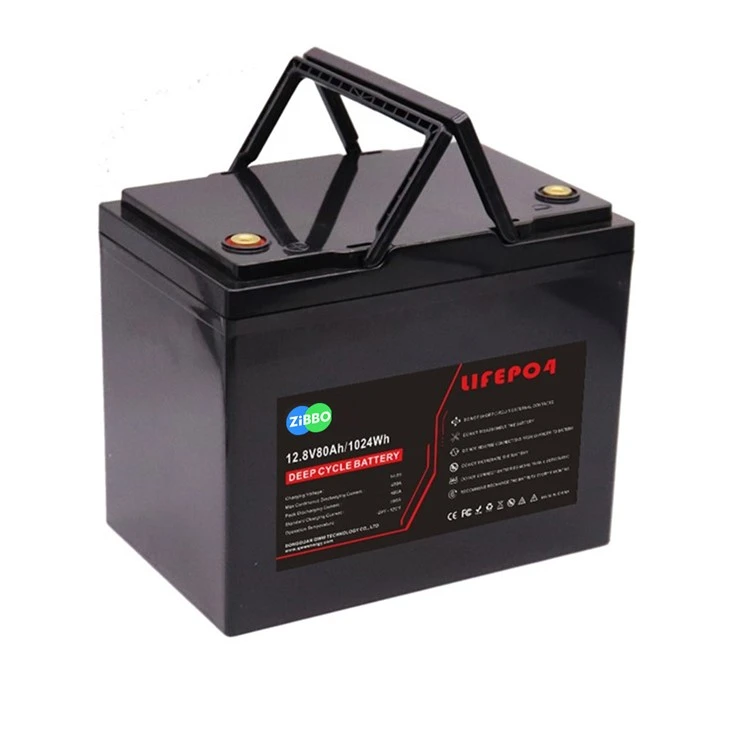

Our 12.8V 80Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

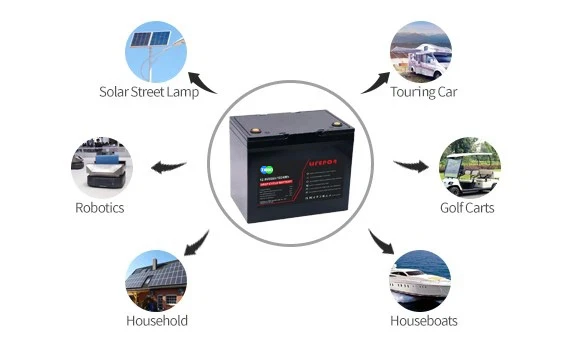

ZBPOWER 12.8V 80AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: How long will a 12V 80Ah battery last?

A: The 12V 80Ah lithium battery offers high performance and reliability, with a long lifespan of up to 10 years. Its ability to operate in a wide temperature range and handle high-power applications makes the 12V 80Ah LiFePO4 battery a great choice for sustainable energy systems.

Q: How powerful is 80Ah battery?

A: 80ah=80*3600coulombs=288,000coulombs. But if you want energy capacity, watt hours, you'll have to tell me the voltage. For example, if 12 volts, it's 960 watt hours. Capacity is 80Ah.

Q: How long does it take to charge 80 Ah battery?

A: Putatively 12 V at 80 AH is 960 Watt hours so 50 watts will in a perfect world take about 20 hours to charge it

Q: What is the alternative to a 12V lead acid battery?

A: 12V lithium battery packs can replace 12V lead acid batteries. Lead acid batteries usually get replaced because lithium batteries have a lifetime that is typically more than 5 times the life of any lead acid battery with 30% more storage capacity per Ampere Hour.

Q: What is the meaning of 80Ah battery?

A: The battery backup duration is measured in ampere-hours, abbreviated as Ah. For example, an 80 ah battery denotes a current flow of 80 amperes for one hour at a 1C rate.

Product Specifications

Nominal Voltage	12.8V
Nominal Capacity	80AH
Rated Energy	1024WH
Dimension	257132H200mm/ customized
Maximum pulse Current	160A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	14.6V
Standard Charge Current	7A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 8.7kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	4S6P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
