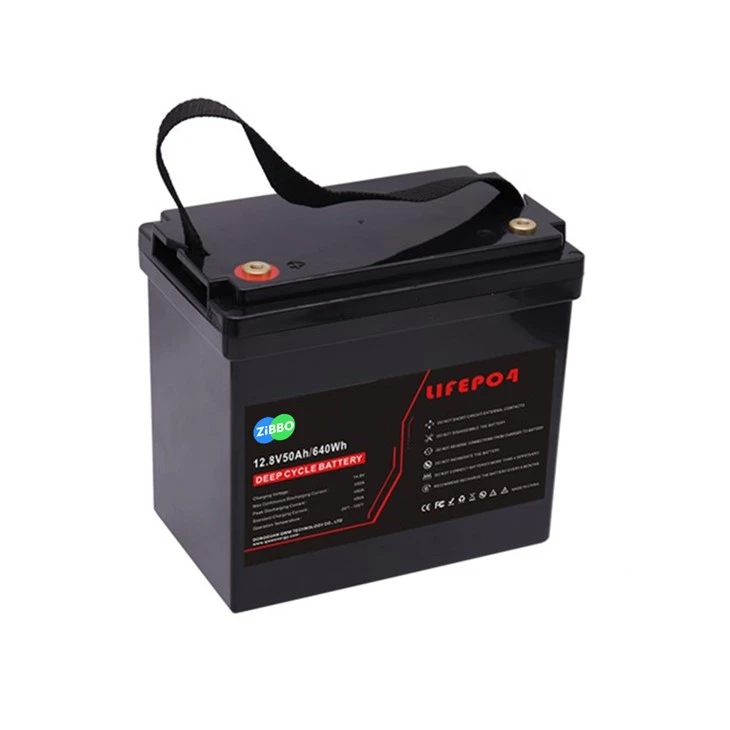

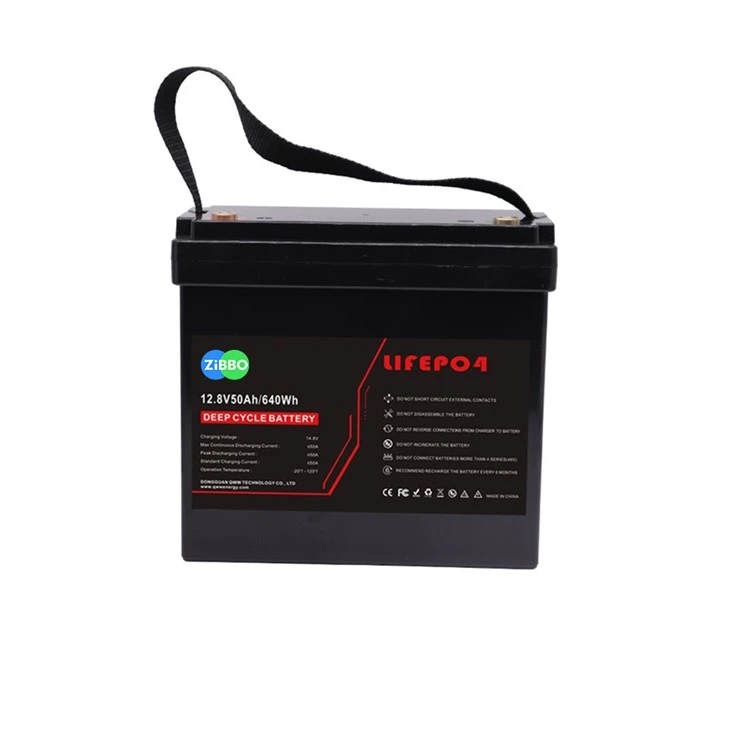

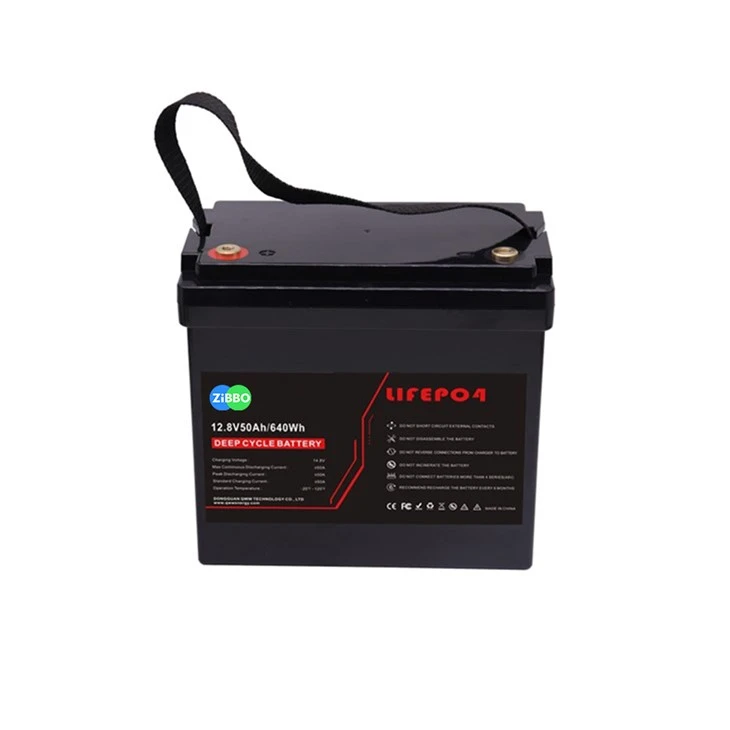

Name: China Customized 12V 50AH Li-FePO4 BATTTER with BMS Manufacturers Factory - Good Price - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227798224

Main Feature

1. Model: ZBPOWER 12V 50Ah

2. Cell information: LiFePO4

3. System power capacity: 640Wh

4. System Voltage: Nominal voltage 12.8V, working voltage range (10-14.6V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

ZBPOWER 12.8V 50AH Lead Acid Replacement Battery Technical Specification

Main feature of ZBPOWER 12.8v 50ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* Supports 4pcs* 12V Batteries connect in series to get 48V .

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

Our 12.8V 50Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

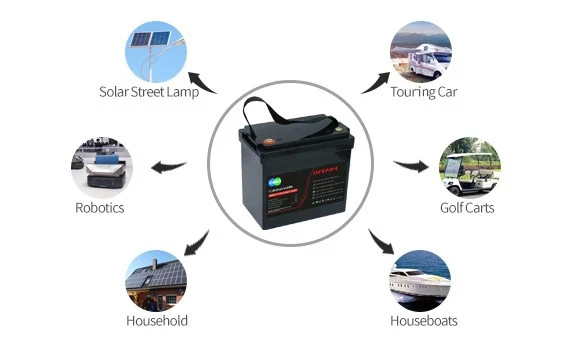

ZBPOWER 12.8V 50AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: How long will a 50Ah battery run a TV?

A: Dividing 40 watts by 120 volts gives us approximately 0.33 amperes. Now, we can calculate the battery life by dividing the battery capacity (50Ah) by the TV's power consumption (0.33A). In this case, the estimated battery life would be around 151 hours.

Q: How long does it take to charge a 12V 50Ah battery?

A: This 12V 50Ah lithium ion battery are develop to high efficiency energy output compared to lead acid batteries, the series battery can accept to 1C sequential charge/discharge current which can make the battery full-charged in one hours.

Q: What is the difference between a 50Ah and a 100Ah battery?

A: All things being equal, a 100AH Pb battery is going to provide twice the output of a 50AH Li battery. If one chooses to only use 50% of the capacity of the 100AH Pb battery and 100% of the capacity of the 50AH Li battery then their capacity will be equal.

Q: What can I power with a 12V 50Ah battery?

A: The 12V 50Ah battery can provide the necessary power to electrify the fences and maintain their functionality. Off-Grid Lighting Systems: The battery can power off-grid lighting systems, including solar-powered garden lights, pathway lights, or remote area lighting.

Q: How long will a 50Ah battery last on an inverter?

A: Example, a small inverter, with an average 150W load, can run from this battery for 4hrs 16min (640 / 150 = 4.267).

Product Specifications

Model	ZBPOWER-12V50AH
Nominal Voltage	12.8V
Nominal Capacity	50AH
Rated Energy	640WH
Dimension	195133H171mm/ customized
Maximum pulse Current	100A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	14.6V
Standard Charge Current	7A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 5.3kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	4S10P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
