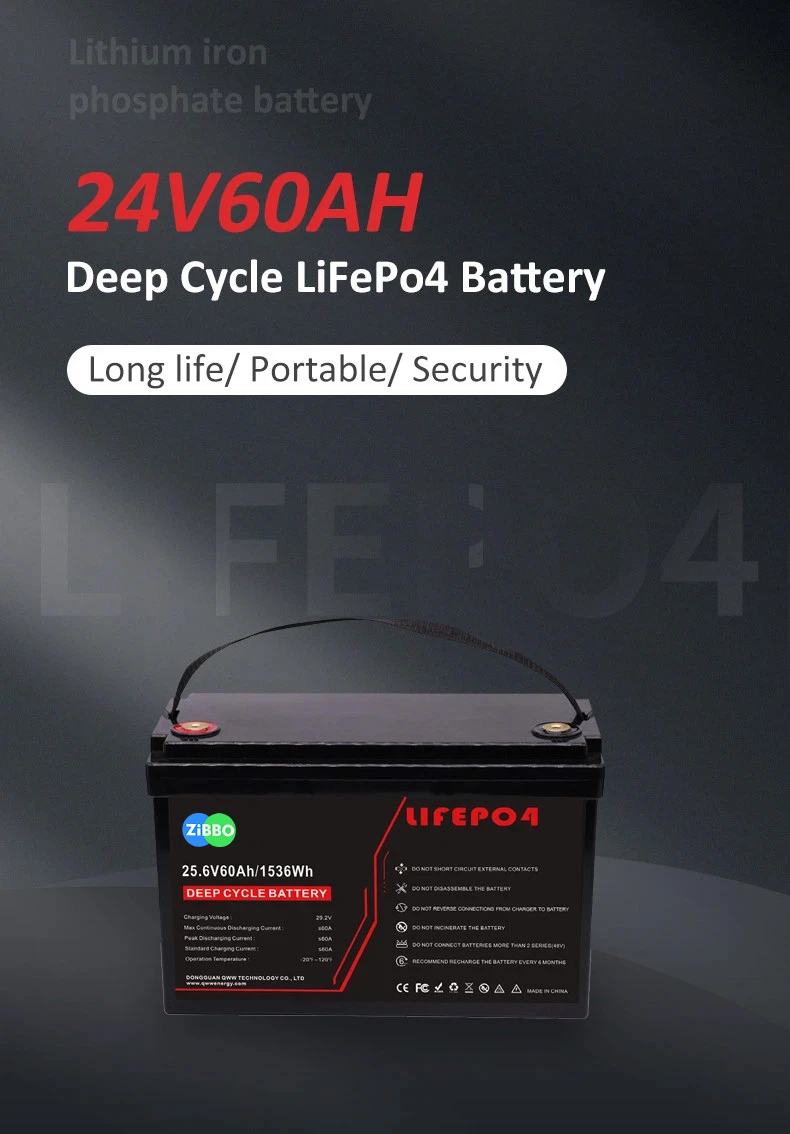

Name: China Customized 24V 60AH Marine Deep Cycle Battery Manufacturers Factory - Good Price - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227802006

Main Feature

1. Model: ZBPOWER 24V 60Ah

2. Cell information: LiFePO4

3. System power capacity: 1536Wh

4. System Voltage: Nominal voltage 25.6V, working voltage range (21.6V-28.8V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

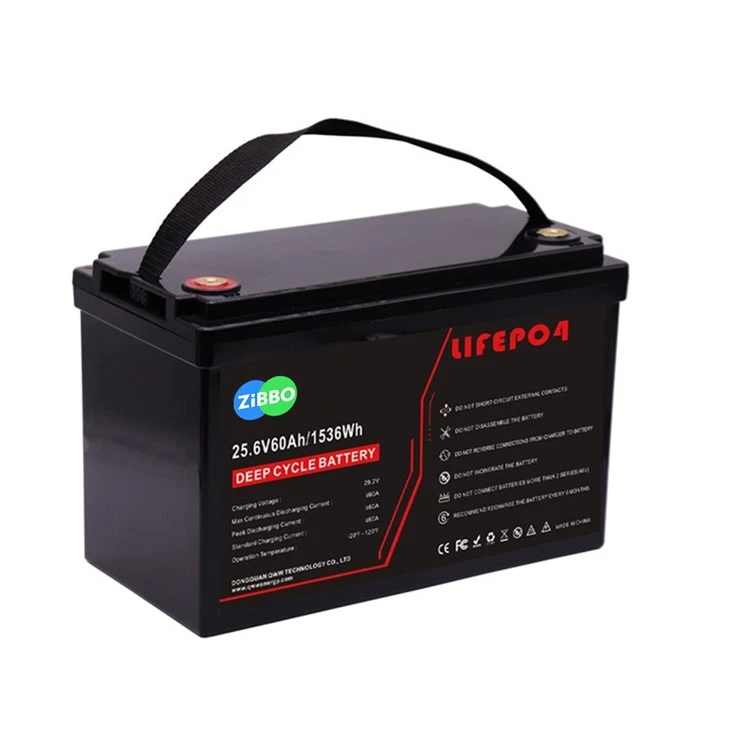

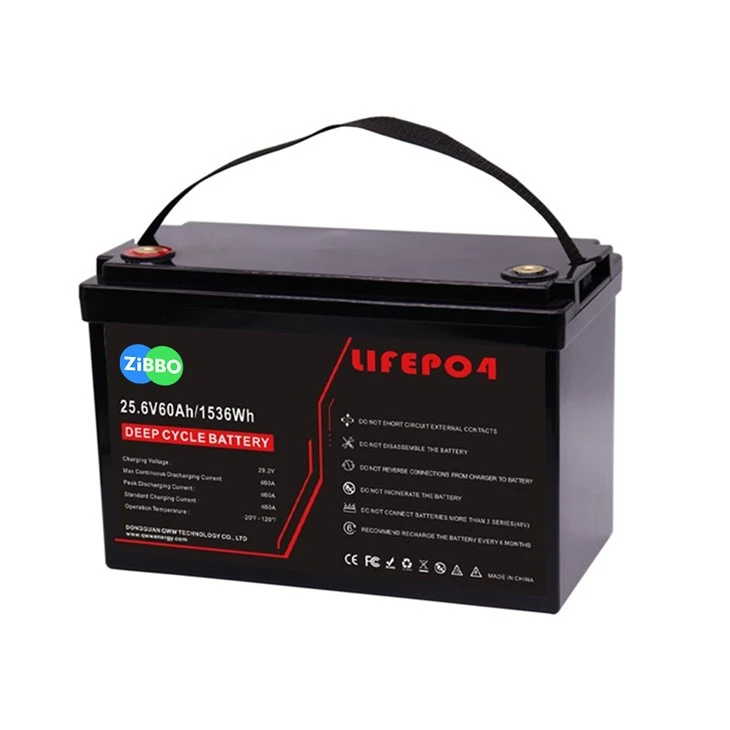

ZBPOWER 24V 60AH Lead Acid Replacement Battery Technical Specification

Main feature of ZBPOWER 24v 60Ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* Supports 4pcs* 12V Batteries connect in series to get 48V .

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

Our 24V 60Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

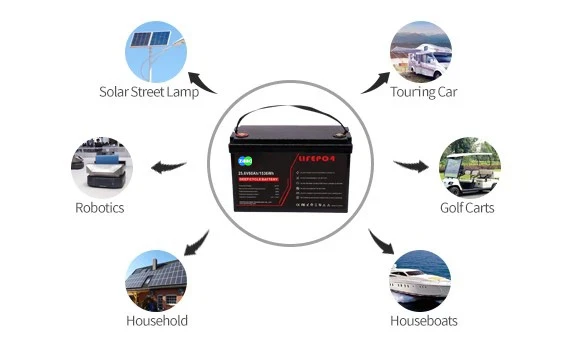

ZBPOWER 24V 60AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: How long does it take to charge a 60Ah Li-FePO4 battery?

A: Typically, it takes around 4-6 hours to fully charge the battery.

Q: How many LiFePO4 cells are in a 12V battery?

A: Four cells. Lead acid batteries have a nominal voltage of 2V/cell, whereas lithium battery cells have a nominal voltage of 3.2V. Therefore, to achieve a 12V battery you'll typically have four cells connected in a series. This will make the nominal voltage of a LiFePO4 12.8V.

Q: What is the best voltage for LiFePO4?

A: Approximately 2.8 volts to 3.65 volts. The typical voltage range for a LiFePO4 cell is approximately 2.8 volts to 3.65 volts. It's important to note that these values may vary slightly based on the manufacturer's specifications.

Q: Do LiFePO4 batteries get hot?

A: The maximum temperature range of the BMS is 60-80°C (140-176°F). See the data sheet for your specific model for the exact upper temperature limit. Lithium Iron Phosphate batteries produce less heat than other lithium battery chemical, but if the upper limit is reached, our BMS will protect the battery by shutting it down.

Product Specifications

Nominal Voltage	25.6V
Nominal Capacity	60AH
Rated Energy	1536WH
Dimension	250173H245mm/ customized
Maximum pulse Current	44A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	25.6V
Standard Charge Current	10A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 14.8Kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	8S1P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
