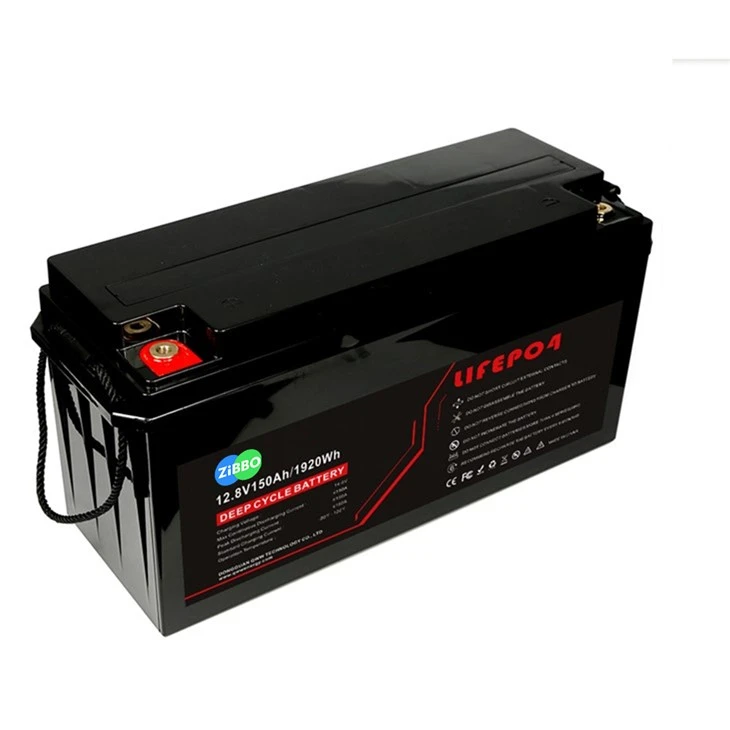

Name: China 12V 150AH Marine Deep Cycle Li-Ion Battery Manufacturers Factory - Wholesale Service - ZBPOWER Technology
Brand: ZBPOWER
SKU: 227800157

Main Feature

1. Model: ZBPOWER 12V 150Ah

2. Cell information: LiFePO4

3. System power capacity: 1920Wh

4. System Voltage: Nominal voltage 12.8V, working voltage range (10-14.6V)

5. Series-parallel support: support for simultaneous series-parallel connection, up to 4 series and 4 parallel connection

6. Lead-acid battery alternatives

7. The lead-acid replacement lithium battery usually can be used on solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

ZBPOWER 12.8V 150AH Lead Acid Replacement Battery Technical Specification

Main feature of ZBPOWER 12v 150ah lifepo4 battery with LCD display:

* Three-year worry-free warranty.

* Over 4500 Cycles at 80% DOD.

* Supports 4pcs* 12V Batteries connect in series to get 48V .

* The shell with LCD screen reach IP57 protection rating

* For electric lawn mowers, golf carts, toy cars, lift gates and motorcycles.

* Maximize your energy potential with 85%+ Depth of Discharge (DOD).

* Intelligent managing automatic cell balancing system improving efficiency

* Superior OEM solution allowed for your requirements on data/ size/capacity even replacement such as changing your lead acid battery to LiFePO4.

* ZBPOWER lead-acid replacement batteries match 98% of inverters on the market

Our 12V 150Ah Lead-acid replacement LFP battery with LCD display

Our lead-acid replacement batteries are long-lasting, lightweight and cleverly designed with a built-in LCD display that can be custom-made to suit your application. Supports series and/or parallel connection. We have other 10AH-500AH lead acid replacement batteries available, please contact us for more details.

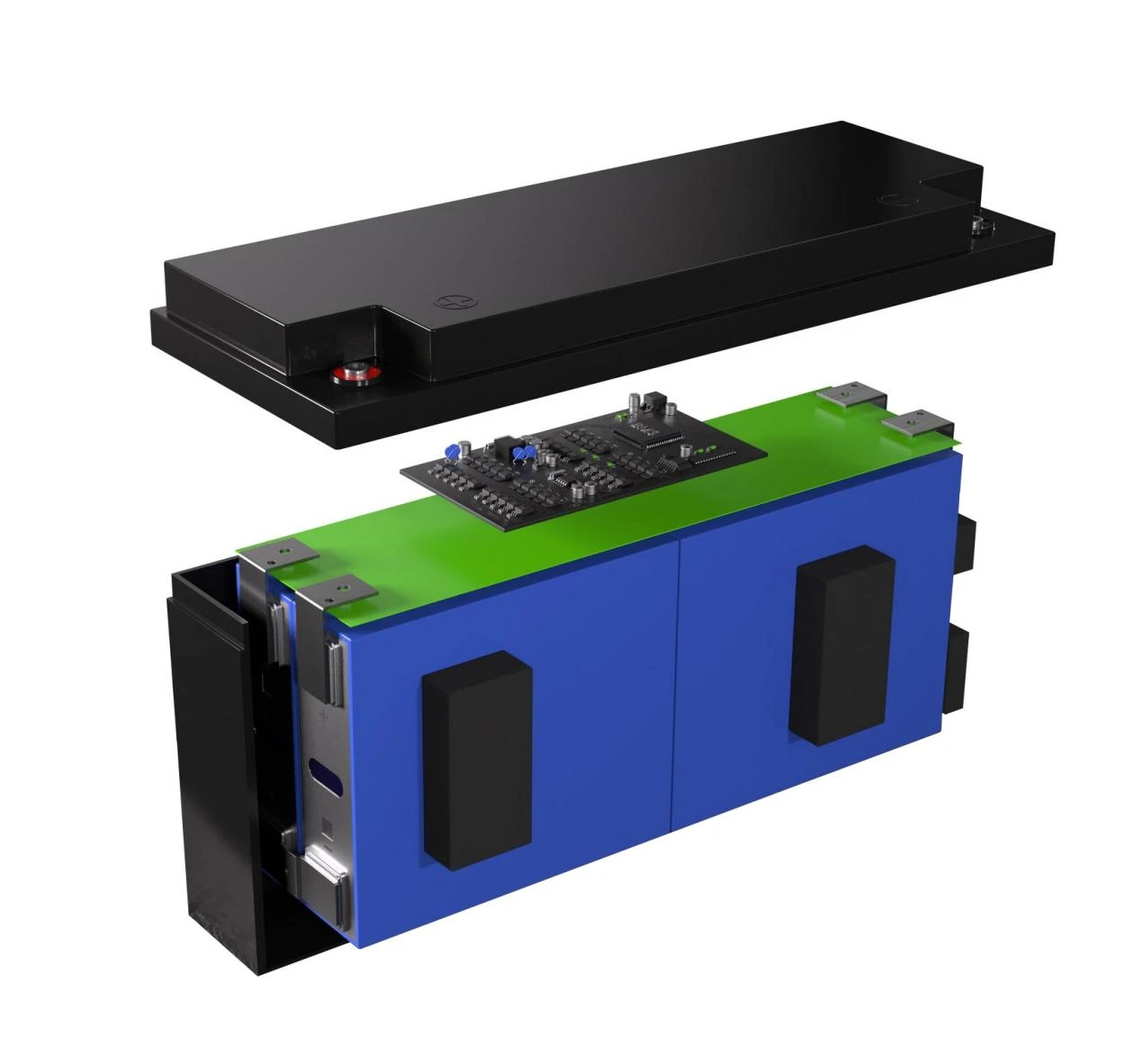

product-1269-1182

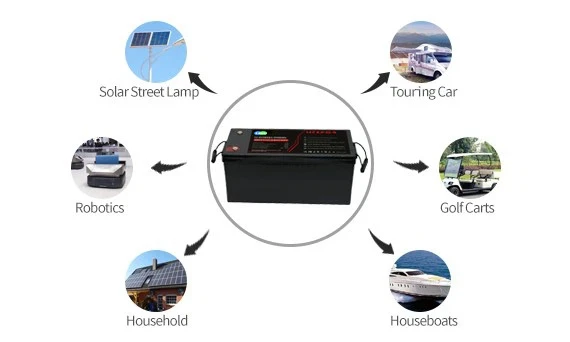

ZBPOWER 12.8V 150AH Lead Acid Replacement Battery Main Application Scenarios

product-1276-275

FAQ

Q: How long does it take to charge a 12V 150Ah battery?

A: A 150Ah battery estimated full charge time is 5–6 hours. Battery charging time also depends on battery charger and inverters/ups systems. Ideal capacity of inverters for 150Ah battery is 850VA to 1100VA. They will charge the 150Ah battery faster instead of smaller capacity.

Q: Why are 12V lithium batteries so expensive?

A: The supply of lithium is limited, and its price is influenced by market supply and demand dynamics. Additionally, the extraction and processing of iron ore also incur costs. Therefore, raw material costs play a significant role in driving up the price of batteries.

Q: Can lithium batteries last 10 years?

A: Generally, a well-maintained lithium battery in a car can last between 8 to 10 years or even more. However, the battery's lifespan may vary significantly depending on how frequently the car is used, how it is charged, the ambient temperature, and the driving style.

Q: What size of solar panel is needed to charge a 12V 150AH battery?

A: Simple answer: A 150AH battery needs 15amps of current in order to be fully charged so 300watts panels should be sufficient as one 100watt panel approx generates 5amps. If there is no load running on the battery.

Q: Can LiFePO4 batteries last 20 years?

A: Theoretically, it is possible, because the theoretical cycle life of lithium iron phosphate batteries is a maximum of 3,000 charge and discharge cycles. Lithium iron phosphate can still be used after 20 years of normal use, but the capacity of the battery will be severely attenuated by then.

Product Specifications

Nominal Voltage	12.8V
Nominal Capacity	150AH
Rated Energy	1920WH
Dimension	349169H179mm/ customized
Maximum pulse Current	300A(<3S)
Discharge Cut-off Voltage	10.0V
Charge Voltage	14.6V
Standard Charge Current	7A ( 0.2C)
Internal Resistance	<20mΩ
Case Material	ABS
Weight	Approx. 14.9kgs
Warranty time	3 years warranty, and 5 years limited maintenance
Self-discharge	≤3.5% per month at 25℃
Customization	Logo, Size, Data OEM available
Cell/ Strings	4S1P, Cylindrical Cell
Cycle Life	2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Hum
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Hum
Charge Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
